0-331-50 25m Roll Nylon Convoluted Split Tubing 50NW

£348.03  Excl. VAT
  (£417.64 Inc. VAT)
RRP:  £400.03
Savings before Cart:  £52.00
Earn 348 Loyalty Points
Available


Weight:  5.20 kg


Model:  0-331-50
Bar Code:  5056119144024
Part Number:  0-331-50
Brand:  Durite
Size:  50NW
Colour:  Black
Material:  Nylon

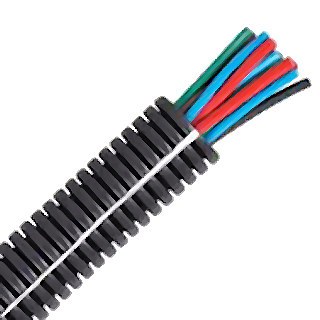

25m roll of Durite black nylon convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 50 (nominal width 50mm).

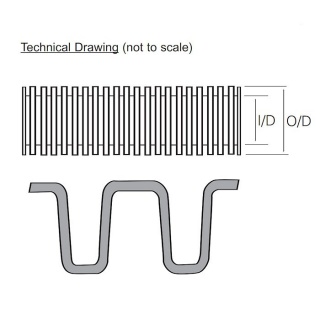

  • Inside diameter: 47.7mm, outside diameter: 54mm.
  • Pack quantity: 25 metre roll.
  • Colour: black.
  • Material: nylon.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 50.0mm
Inside diameter (ID) 47.7mm
Outside diameter (OD) 54mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
