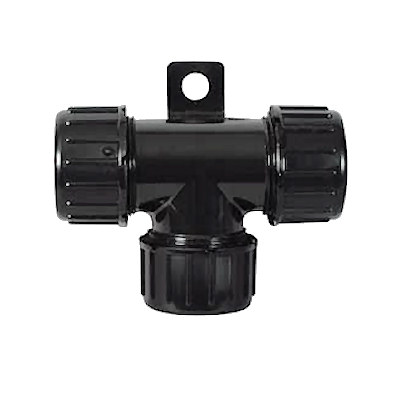

0-330-57 Polycarbonate Sealed T-Piece Connector 7.5NW

£5.91  Excl. VAT
  (£7.09 Inc. VAT)
RRP:  £6.64  Excl. VAT
Initial Savings:  £0.73
Earn 5 Loyalty Points
Available


Weight:  20 g





Model:  0-330-57
Bar Code:  5056119108262
Part Number:  0-330-57
Brand:  Durite
Size:  7.5NW
Colour:  Black
Material:  Polycarbonate


 Black polycarbonate sealed T-piece fitting with nylon cap nuts with sealing rings, for fitting onto unsplit tubing to create a cable tubing junction.

  • Used with unsplit tubing.
  • With nylon cap nuts.
  • Size 7.5NW.
  • Pack Quantity: 1 piece.
  • Sealed to IP67.
  • Black polycarbonate.

About The Polycarbonate Sealed T-Pieces

 7.5 NW (Nominal width 7.5mm) polycarbonate seal type T-Piece connector. Used with unsplit tube conduit to navigate around vehicle components and mechanical parts when creating an electric cable loom run around a chassis. T-piece connectors make a junction T spur in the cable run, where a same size (in the case of this unit) tubing can be joined into the conduit.

Specifications

Type Sealed ‘T’ piece
For tube size 7.5NW
Material - cap nut Nylon (Polyamide)
Material - seal Neoprene
Material - body Polycarbonate
Temperature range Minus 25 to +80℃
Protection IP67
