0-327-40 Nylon Unsealed T-Piece Connector 10NW 7.5NW
Weight: 10 g
Bar Code: 5056119107791
Part Number: 0-327-40

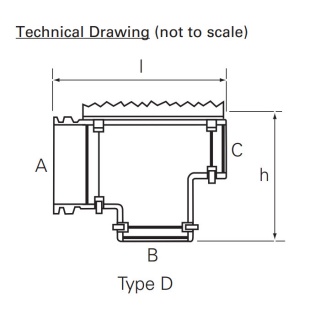

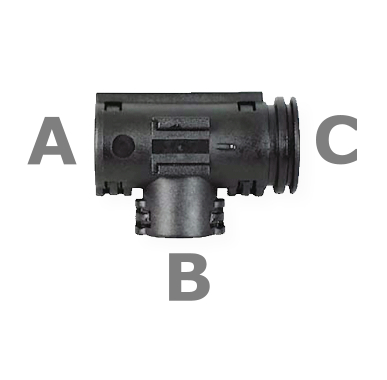

Nylon unsealed automotive T-piece connector. Black nylon unsealed T-piece connector, for fitting onto unsplit tubing to create an electric cable tube junction; sizes A, B and C are clearly marked on the product image.
- Used with unsplit tubing.
- Black nylon.
- Pack Quantity: 1 piece.
- A: 10NW
- B: 7.5NW
- C: 7.5NW
About The Auto Cable Tubing T-Pieces
7.5NW to 10NW (nominal width 7.5mm and 10mm) auto electrical T-piece connector, used with unsplit tube conduit to navigate around components and mechanical parts when creating an electrical cable loom run around a vehicle chassis. T-piece connectors make a junction spur in the wiring run, where a different size (in the case of this unit) tubing can be joined into the conduit.
|Type ||‘T’ piece connector |
|Port A Nominal Width ||10.0mm |
|Port B Nominal Width ||7.5mm |
|Port C Nominal Width ||7.5mm |
|Height (h) ||28.7mm |
|Length (l) ||39.7mm |
|Case type ||D |
|Closure ||Snap together |
|Material ||Nylon (Polyamide 66) |
|Temperature range ||Minus 40 to +135℃ (maximum 150℃ for 240 hours) |
