0-326-43 Pack of 25 Nylon Clamping Chassis Clips 17NW

£10.75  Excl. VAT
  (£12.90 Inc. VAT)
RRP:  £12.08  Excl. VAT
Initial Savings:  £1.33
Earn 10 Loyalty Points
Available


Weight:  40 g


Model:  0-326-43
Bar Code:  5056119107500
Part Number:  0-326-43
Brand:  Durite
Size  17NW
Colour  Black
Material  Nylon

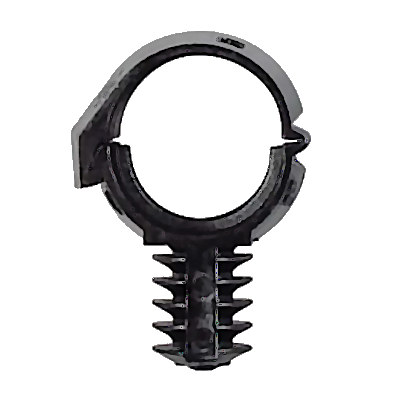

 Durite auto electrical nylon clamping chassis clips, 17NW. Black nylon clamping chassis clips for all types of tubing of the compatible size listed. The clips are designed to push-fit into a pre-drilled hole to retain cable tubing, keeping the cables protected and tidy.

  • Suitable for tubing size: 17NW.
  • Black nylon.

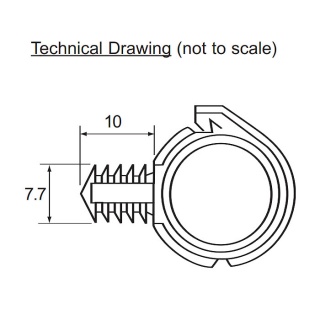

  • Requires: 6mm drilled hole, push depth: 10mm.
  • Pack Quantity: 25 pieces.

About The Tubing Chassis Clips

 Nominal width (NW) 17mm clip locking automotive chassis clamps for retaining cable tubing securely to the vehicle chassis, used when laying a loom run of electric cables for lighting or auxiliary equipment.

Specifications

Type Clamping clip
Port Nominal Width 17.0mm
Application Support for convoluted tubing
Closure Snap together
Material Nylon (Polyamide 66)
Recommended Fixing Hole 6mm diameter
Temperature Range Minus 40 to +125℃
