0-327-30 Nylon Unsealed T-Piece Connector 7.5NW

£1.10  Excl. VAT
  (£1.32 Inc. VAT)
RRP:  £1.24  Excl. VAT
Initial Savings:  £0.14
Earn 1 Loyalty Points
Available


Weight:  10 g




Model:  0-327-30
Bar Code:  5056119107784
Part Number:  0-327-30
Brand:  Durite
Size:  7.5NW
Colour:  Black
Material:  Nylon

Share

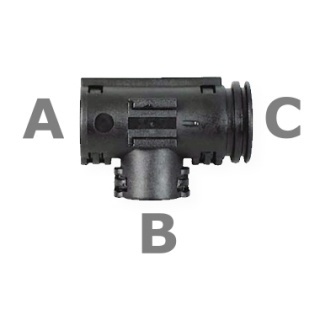

 Nylon unsealed 7.5NW automotive T-piece connector. Black nylon unsealed T-piece connector, for fitting onto unsplit tubing to create an electric cable tube junction; sizes A, B and C are clearly marked on the product image.

  • Used with unsplit tubing.
  • Unsealed.
  • Black nylon.
  • Pack Quantity: 1 piece.

Gland Size

  • A: 7.5NW
  • B: 7.5NW
  • C: 7.5NW

About The Auto Cable Tubing T-Pieces

 7.5NW (nominal width 7.5mm) auto electrical T-piece connector, used with unsplit tube conduit to navigate around components and mechanical parts when creating an electrical cable loom run around a vehicle chassis. T-piece connectors make a junction spur in the cable run, where the same sized (in the case of this unit) tubes can join into the conduit.

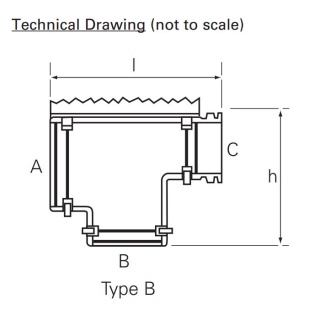

Specifications

Type ‘T’ piece connector
Port A Nominal Width 7.5mm
Port B Nominal Width 7.5mm
Port C Nominal Width 7.5mm
Height (h) 24.7mm
Length (l) 33.4mm
Case type B
Closure Snap together
Material Nylon (Polyamide 66)
Temperature range Minus 40 to +135℃ (maximum 150℃ for 240 hours)




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.
International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

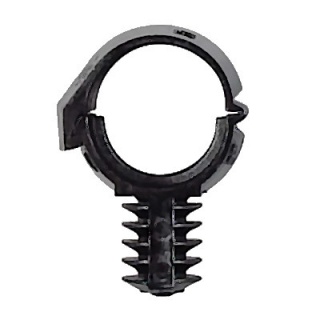

0-326-43 Pack of 25 Nylon Clamping Chassis Clips 17NW
0-326-43 Pack of 25 Nylon Clamping Chassis Clips 17NW

Durite Black nylon clamping chassis clips for 17NW tubing. Chassis and bulkhead mounted tube retainer for a 6.0mm drilled hole.


Available
 Reference: 0-326-43 £12.08   £10.75
0-327-12 Nylon Unsealed Y-Piece Connector 13NW 7.5NW 10NW
0-327-12 Nylon Unsealed Y-Piece Connector 13NW 7.5NW 10NW

Black nylon unsealed Y-piece connector, NW, A: 13, B: 7.5, C: 10, for fitting onto unsplit tubing to create a cable tubing junction.


Available
 Reference: 0-327-12 £1.70   £1.51

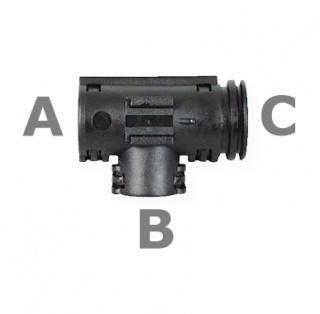

0-327-40 Nylon Unsealed T-Piece Connector 10NW 7.5NW
