0-328-29 25M Roll Polypropylene Deep Section Convoluted Split Tubing 29NW

£57.55  Excl. VAT
  (£69.06 Inc. VAT)
RRP:  £66.15  Excl. VAT
Savings before Cart:  £8.60
Earn 57 Loyalty Points
Available


Weight:  1.96 kg


Model:  0-328-29
Bar Code:  5056119144055
Part Number:  0-328-29
Brand:  Durite
Size:  27NW
Colour:  Black
Material:  Polypropylene

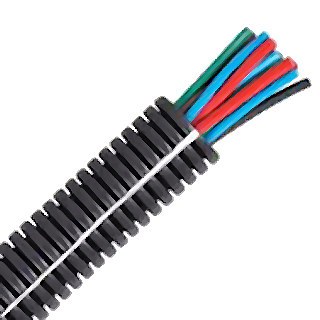

 25m roll, black polypropylene deep section convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 29 (nominal width 29mm).
  • Inside diameter: 29.3mm, outside diameter: 33.9mm.
  • Pack quantity: 25 metre roll.
  • Colour: black.
  • Material: polypropylene.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 29.0mm
Inside diameter (ID) 29.3mm
Outside diameter (OD) 33.9mm
Material Polypropylene
Temperature range Minus 40 to +125℃
Flame retardant Yes
Self extinguishing Yes (In accordance with FMVSS 302)
Cold impact resistance High
UV resistance DIN EN ISO 8580
