0-234-80 MEGA and MIDI Fuse Holder With Common Link

0-234-80 MEGA and MIDI Fuse Holder With Common Link
0-234-80 MEGA and MIDI Fuse Holder With Common Link
0-234-80 MEGA and MIDI Fuse Holder With Common Link
£38.54 Excl. VAT
RRP £43.80 Excl. VAT
Initial Savings
£5.26
(£46.25 Inc. VAT)
Earn 38 Loyalty Points

Available
Model
0-234-80
Bar Code
5056119166972
Part Number
0-234-80
Brand
Durite
Colour
Black
Voltage
12V/24V DC
Amperage
MEGA: 500A and MIDI 200A Max.
Weight
190 g

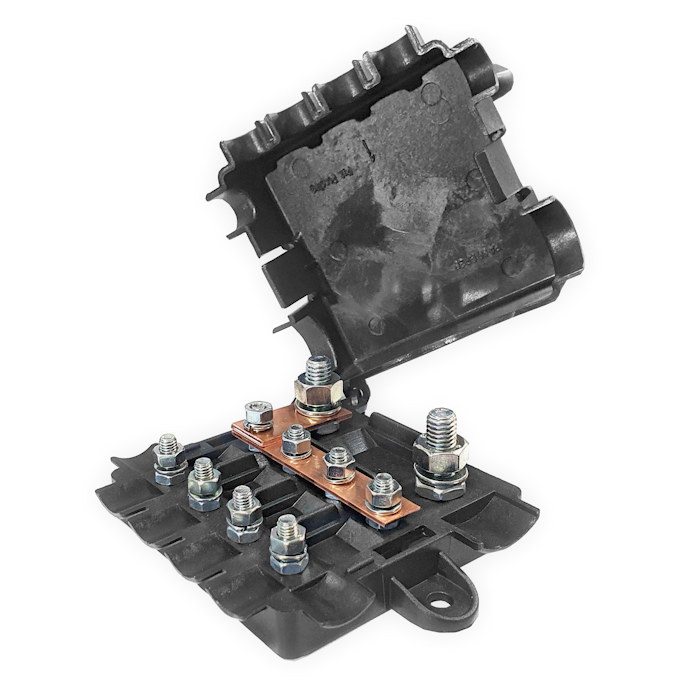

 Durite 0-234-80 heavy-duty auto electrical MEGA and MIDI fuse carrier for light, commercial and industrial vehicles.

  • The holder accommodates one MEGA fuse and four MIDI fuses.
  • Copper common link bars included.
  • Two M8 studs for the MEGA fuse and eight M5 studs for the MIDI fuse.
  • Rated at 32V 500A Mega fuse + 200A for Midi fuses
  • Pack quantity: 1 piece.

Closed Box Dimensions Excluding Mounting Holes

  • Length: 97mm.
  • Width: 87mm.
  • Height: 38mm.
  • Overall length, including mounting lugs: 116mm.

About the MEGA and MIDI Fuse Holder

 Introducing the Durite Mega and MIDI Fuse Holder, the perfect carrier for automotive Littelfuse style MEGA and MIDI fuses. With a maximum load of 500A for the MEGA fuse and 200A for the MIDI, this fusible panel-mounted holder is ideal for protecting many high-voltage or high-capacity circuits. It is also robust and will last for years to come. The MEGA and MIDI fuse carrier is designed to fit into wiring panels and easily accessible locations using regular M8 copper tube crimp connectors. The integral mounting holes to suit M5 bolts ensure easy and secure installation.

 The combined 1 x MEGA and 4 x MIDI fuse carrier from the Durite is ideal for heavy gauge fusing of automotive cables and vehicle wiring. Used for applications such as protecting a circuit close to an automotive battery source, for example, alternator connections and auto electric switchgear on vehicles, marine watercraft and industrial equipment.

 The MEGA and MIDI fuse range is ideal for heavier-duty DC electrical circuits and heavy-duty gauge electric cables.
