6 Way Mini Blade Busbar Fuse Box | Re: 0-234-36

£7.45  Excl. VAT
  (£8.94 Inc. VAT)
RRP:  £8.56
Savings before Cart:  £1.11
Earn 7 Loyalty Points
Available


Weight:  80 g


Model:  0-234-36
Bar Code:  5056119106732
Part Number:  0-234-36
Brand:  Durite
Colour:  Black/Clear
Voltage:  32V DC Max.
Amperage:  100A

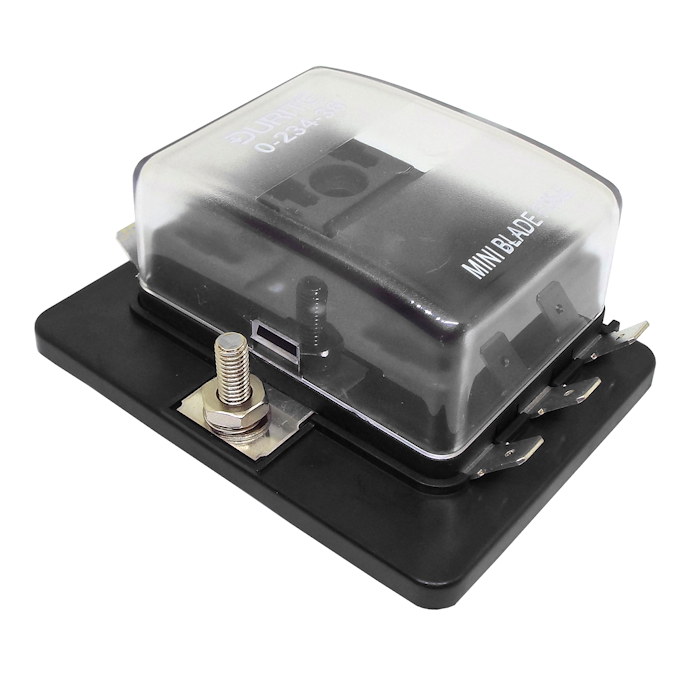

 Fuse box for mini blade fuses.

  • Holder for the range of mini blade fuses.
  • 6 way, six fuse positions with a common busbar for input.
  • Busbar: M5 stud.
  • 6.3mm blade terminal outputs.
  • Voltage rated to: 32V DC.
  • Maximum busbar load: 100A.

Dimensions

  • Height: 36mm.
  • Base width: 85mm.
  • Base length: 63mm.

About the 6 Way Mini Spade Fuse Box

 Modern style fuse carrier comes with an easy inspection PVC cover. The mini blade fuse holder is designed to pick up the common input and then fuse protect components via the 6.3mm spade connection.
