SW88B-27 Albright Double-acting Reversing Solenoid 24V Intermittent

£99.21  Excl. VAT
  (£119.05 Inc. VAT)
 Excl. VAT

Earn 99 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.01 kg


Model:  SW88B-27
Bar Code:  DNA
Part Number:  SW88B-27
Brand:  Albright
Colour  Black
Voltage  24V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

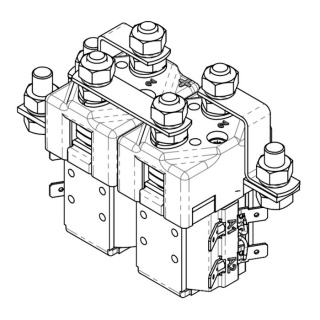

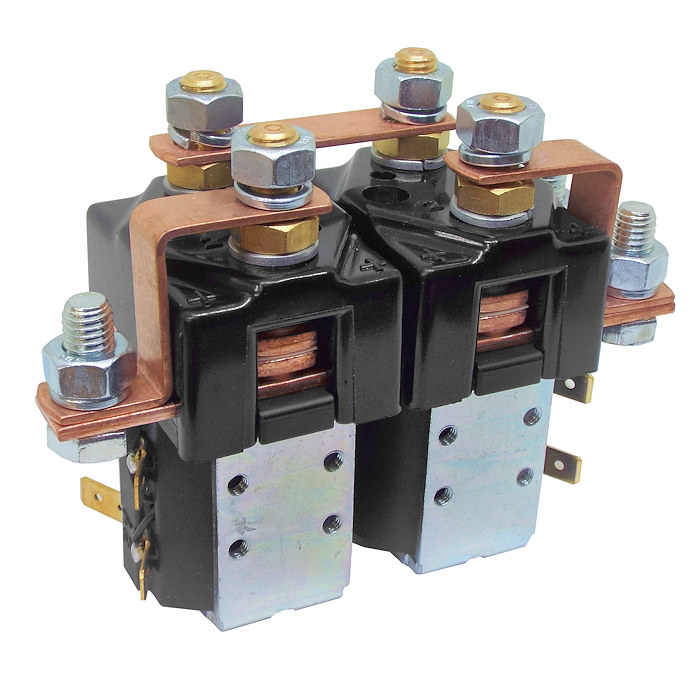

 Albright SW88B-27 24Vdc 100 Amps double-acting strapped pair contactor with magnetic blowouts, intermittent.

  • Double-acting strapped pair 24 Volts DC contactor for motor reversing.
  • The SW88 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2070-151.
  • Auxiliary switch kit part number: 2070-124 (1 kit does 1 x coil).
  • Top covers and links are reversed as opposed to standard configurations.
  • No bracket fitted.

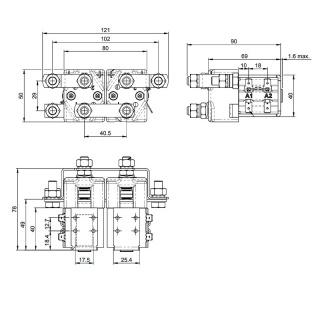

Dimensions

  • Height including terminals and coil base cap: 94mm.
  • Coil width including bars: 119mm.
  • Cap width: 2 x 39mm.
  • Total depth including bracket: 55mm.

About The Intermittent SW88B-27 Reversing Contactors

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW88B is a configuration of two SW84B type contactors on a common bracket for motor reversing. The SW88B features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

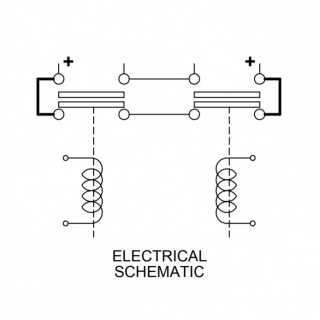

 The SW88B main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW88B has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Magnetic Blowouts

 These contactors are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW88B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

Specifications

Device Type Strapped Pair
Voltage 24V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 12.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 18.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: 40mV
NC: 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 960kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
