SW85-315 Albright 60Vdc Single-acting Normally Closed Contactor - Continuous

£43.93  Excl. VAT
  (£52.72 Inc. VAT)
 Excl. VAT

Earn 43 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  400 g





Model:  SW85-315
Bar Code:  DNA
Part Number:  SW85-315
Brand:  Albright
Colour:  Black
Voltage:  60V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

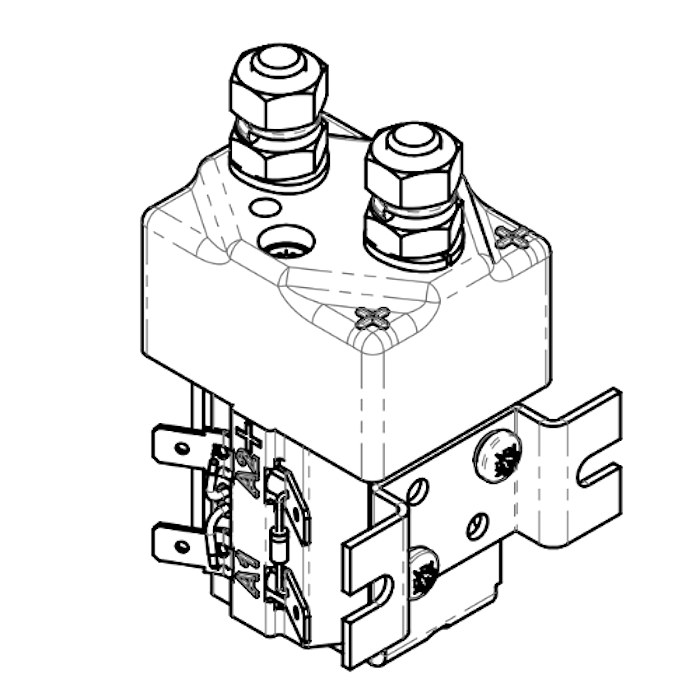

 Albright SW85-315 60Vdc single-acting 'Normally Closed' contactor, continuous.

  • The SW85 has been designed for direct current loads, particularly motors used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW85 is suitable for switching Resistive, Capacitive and Inductive loads.
  • Mounting bracket (fitted): 2126-48A.

About Normally Closed Continuous (CO.) SW85 Solenoids

 Normally Closed, Continuous contactors by design are for an ‘Always On’ line function and break only when the coil is energised; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW85 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW85 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes, or mounting brackets supplied fitted. Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point downwards.

Specifications

Device Type NC - SP - ST
Voltage 60V D.C.
Operating Limits 40V to 62.5V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 305
Pull-In Voltage (V) 40.0 Max.
Drop Out Voltage (V) 15.0 Max.
Coil Power Dissipation (W) 11.80
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
50mV
Operating Ambient Temperature -40 to +60℃
Weight 400g
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
