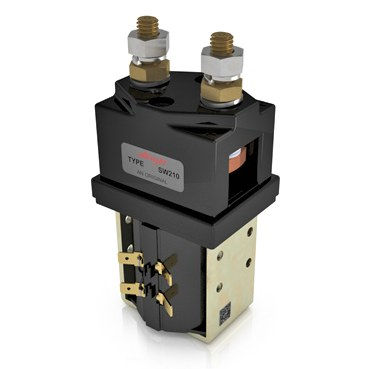

SW210-274 Albright Single-acting Normally Closed Solenoid 24V Continuous

£121.14  Excl. VAT
  (£145.37 Inc. VAT)
 Excl. VAT

Earn 121 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.40 kg





Model:  SW210-274
Bar Code:  DNA
Part Number:  SW210-274
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright SW210 single-acting 'Normally Closed' 24Vdc solenoid contactor, continuous.

  • The SW210 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • There is no mounting bracket supplied with this version.
  • To be used vertically (with main contacts pointing upwards).

Associated products

  • 2028-551A Mounting bracket
  • 2155-202 Auxiliary switch kit

Dimensions

  • Height, including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.

About The Normally Closed Continuous (CO.) SW210 Solenoids

 Normally Closed continuous contactors by design are for an ‘Always On’ line function and break only when the coil is energised; they break slower than intermittent solenoids and are recommended for prolonged contact periods.

Specifications

Device Type NC - SP - ST
Voltage 24V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 32
Pull-In Voltage (V) 16.0 Max.
Drop Out Voltage (V) 4.0 Max.
Coil Power Dissipation (W) 18.00
Typical Voltage Drop Per Pole
across New Contacts at 250A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 1400g
Application Interrupted/Uninterupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
