SW85-13 Albright Normally Closed Solenoid Contactor - 36V Continuous

£38.43  Excl. VAT
  (£46.12 Inc. VAT)
 Excl. VAT

Earn 38 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  380 g


Model:  SW85-13
Bar Code:  DNA
Part Number:  SW85-13
Brand:  Albright
Colour  Black
Voltage  36V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

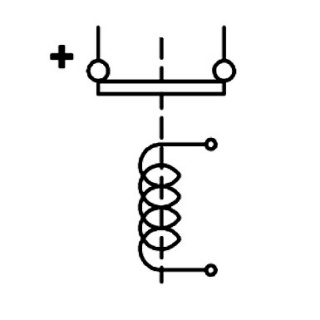

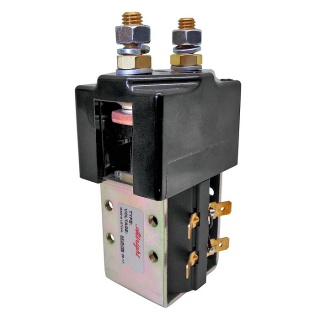

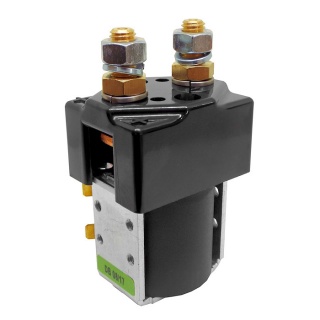

 SW85-13 single-acting Normally Closed (NC) 36Vdc solenoid contactor, continuous use.

  • The SW85 series of SPST contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Contact replacement kit part number 2070-388 is available for this unit.

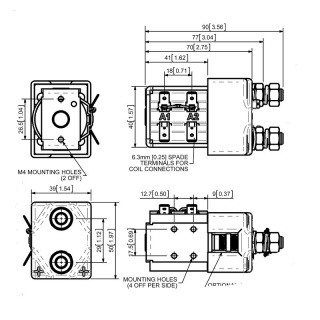

Dimensions

  • Height including terminals and coil base cap: 90mm.
  • Coil width: 40mm.
  • Cap width: 50mm.
  • Cap depth: 39mm.

About Continuous (CO.) SW85 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW85 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW85 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes for mounting brackets supplied as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point downwards.

 Please note: Normally Closed contacts are not suited to make and break load.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SW85 SPST NC
Voltage 36V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 120
Pull-In Voltage (V) 24.0 Maximum
Drop Out Voltage (V) 3.5 Maximum
Coil Power Dissipation (W) 10.80
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
50mV
Operating Ambient Temperature -40 to +60℃
Weight 360g
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
