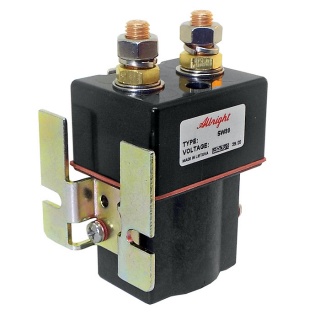

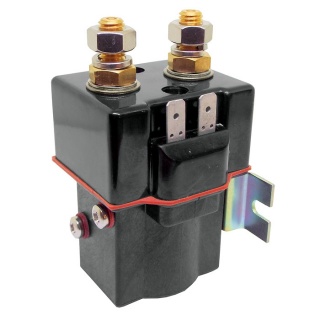

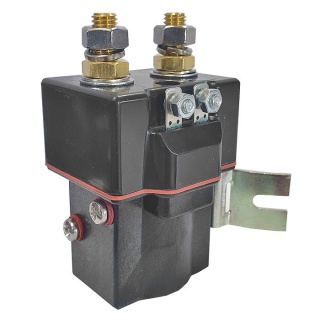

SW80-832PL Albright Solenoid Contactor 24V Intermittent Sealed to IP66
Despatch: 9 to 12 Weeks
Weight: 400 g
Bar Code: DNA
Part Number: SW80-832PL
Voltage: 24V DC
Coil type: Intermittent
Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.
SW80-832PL single acting solenoid contactor 24V intermittent with large tips.
- Sealed to IP66 for weatherproofing and are suitable for marine internal application.
- The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- They are economical in price and compare favourably with sealed automotive style solenoid switches.
- Repair contact kits are not available for this unit due to the weatherproofing.
- This version has larger silver alloy tips fitted and has additional "o"rings on fixed contacts, fibre washers and lower shroud gasket fitted.
- Top hat bracket fitted.

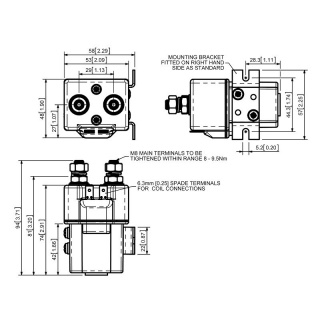

- Height including terminals and coil base cap: 94mm.
- Coil width: 41mm.
- Cap width: 50.5mm.
- Cap depth: 39mm.
About Intermittent (Int.) SW80P Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW80P features an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
|Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance). |
|Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
|Device Type ||SW80P SPST NO |
|Voltage ||24V D.C. |
|Coil Type ||Intermittent |
|Amps ||100 amp |
|Coil Resistance (Ohms) ||22 |
|Pull-In Voltage (V) ||15.0 Maximum |
|Drop Out Voltage (V) ||6.0 Maximum |
|Coil Power Dissipation (W) ||26.18 |
|Typical Pull-In Time ||20ms |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Less than 40mV |
|Operating Ambient Temperature ||-40 to +60℃ |
|Protection ||IP66 |
|Weight ||390g |
|Application ||Interrupted ||Uninterrupted |
|Thermal Current Rating ||100A ||125A |
|Intermittent Current Rating: |
|30% Duty ||185A ||230A |
|40% Duty ||160A ||200A |
|50% Duty ||140A ||175A |
|60% Duty ||130A ||160A |
|70% Duty ||120A ||150A |
