SW66B-13 Albright Double-acting Reversing Solenoid 80V Intermittent

£56.57  Excl. VAT
  (£67.88 Inc. VAT)
 Excl. VAT

Earn 56 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  480 g





Model:  SW66B-13
Bar Code:  DNA
Part Number:  SW66b-13
Brand:  Albright
Colour  Black
Voltage  80V DC
Amperage  80A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

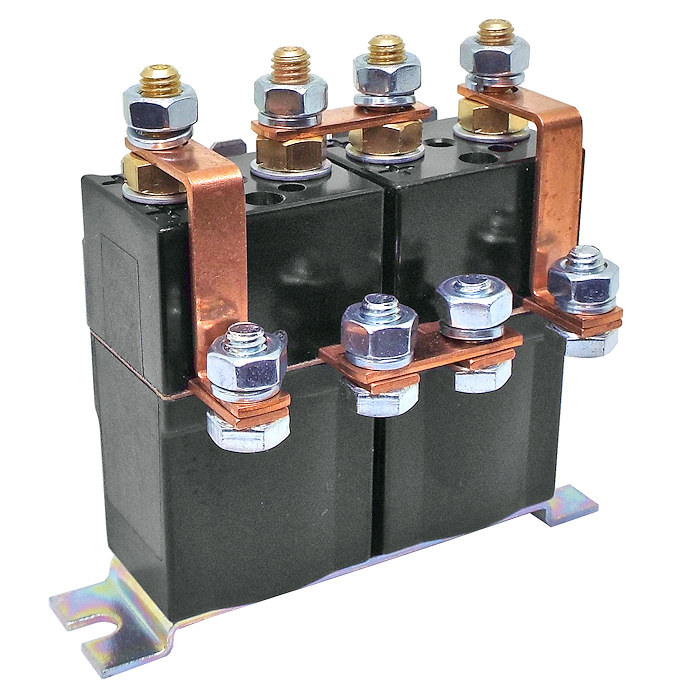

 SW66B-13 80 Volts 80A intermittent electric motor reversing strapped pair solenoid contactor.

  • The SW66B range of contactors is a miniature series contactor, designed to fill the gap between 30-ampere relays and 100-ampere contactors.
  • The SW66B has STUD termination and is suitable for free-standing within the installation.
  • The SW66B series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered and mobility or invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant.
  • There are no contact kits available for this range of units.
  • Comes with a fixed base mounting bracket as standard.

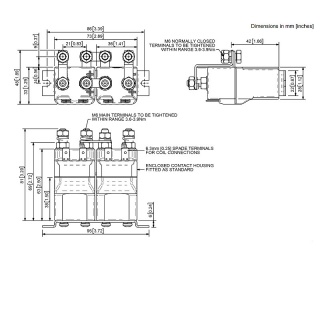

Dimensions

  • Base plate to the top of brass studs (height): 88mm.
  • Length including mounting bracket: 95mm.
  • Body length excluding mounting bracket: 73mm.
  • Depth including protruding studs: 48mm.
  • Mounting or line studs: M6.

Magnetic Blowouts

 These contactors are fitted with magnetic blowouts (denoted by 'B' suffix in the SW66B range) across contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW66B-13 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

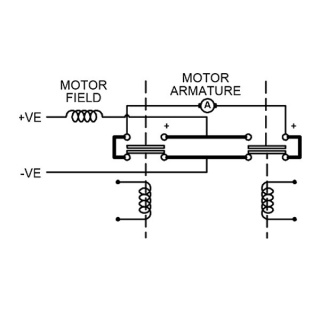

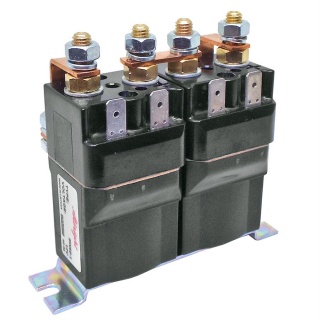

 The SW66B features two single-pole SW61B contactors on a double bracket for motor reversing. The solenoids have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW61B has M6 stud main terminals and 6.3mm spade coil connections. The SW66B is mounted via the base mounting bracket (supplied). Please note Normally Closed contacts are not suited to make and break load.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SW66, 2 x SW61 on a double bracket
Voltage 80V D.C.
Coil Type Intermittent
Amps 80A
Coil Power Dissipation 10 - 14 Watts
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 480g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.


Related Products

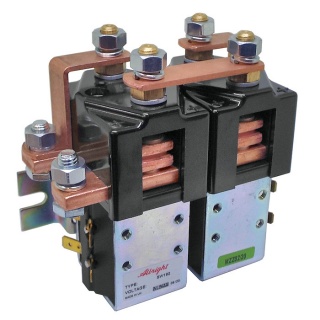

SW182-1 Albright Double-acting Motor-reversing Solenoid 12V Intermittent
SW182-1 Albright Double-acting Motor-reversing Solenoid 12V Intermittent

SW182-1 double-acting strapped pair contactor 12V intermittent. Changeover strapped pair 12 Volts DC for motor-reversing.


No stock
 Reference: SW182-1 £155.84
SW182B-185L Albright Double-acting Motor-reversing Solenoid 72-80V Intermittent
SW182B-185L Albright Double-acting Motor-reversing Solenoid 72-80V Intermittent

SW182B-185L double-acting strapped pair contactor 72-80V intermittent. 72 to 80 Volts DC solenoid with large tips.


Pre-order
Despatch: 9 to 12 WeeksReference: SW182B-185L £156.30
SW182B-316 Albright Double-acting Motor-reversing Solenoid 72-80V Intermittent
SW182B-316 Albright Double-acting Motor-reversing Solenoid 72-80V Intermittent

SW182B-316 double-acting strapped pair contactor 72-80V intermittent. 72 to 80 Volts DC motor-reversing solenoid.


Pre-order
Despatch: 9 to 12 WeeksReference: SW182B-316 £156.30

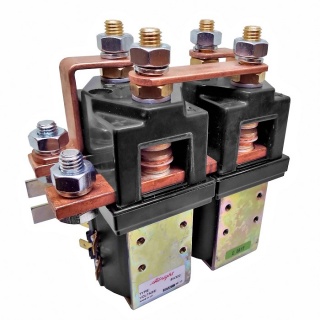

SW202-136 Albright Double-acting Motor-reversing Solenoid 24V Intermittent
