SW560-168 Albright 48V 600A Busbar Contactor - Continuous
Pre-order
Despatch: 6 to 8 Weeks |
Weight: 1.10kg
Model: SW560-168
Bar Code: DNA
Part Number: SW560-168
Brand: Albright
Colour: Black
Voltage: 48V DC
Amperage: 600A
Material: Copper/Silver/Bakelite
Coil type: Continuous
| Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

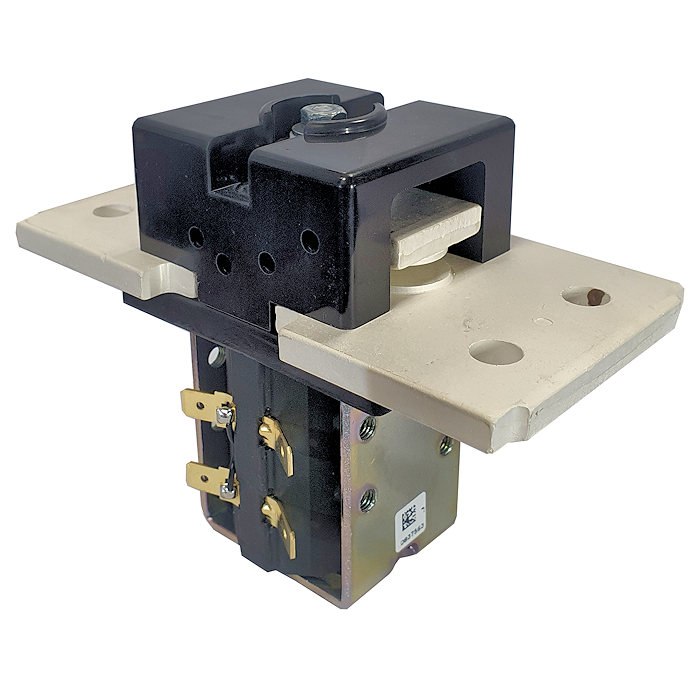

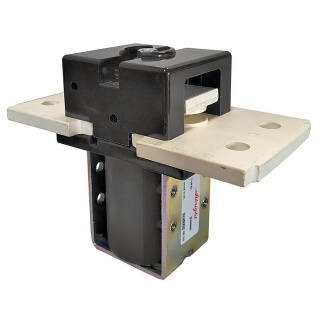

Albright International SW560-168 48 volts single pole, single throw continuous use solenoid contactor.
- The SW560 is designed for use in telecommunications and power distribution applications where an uninterrupted current load is switched.
- These contactors are primarily for use with Direct Current loads but can also be used with Alternating Currents.
- The SW560 features double breaking main contacts with silver alloy tips which are weld resistant, hardwearing and have excellent conductivity.
- Silver plating on the main contacts is standard for the SW560.
- Due to their configuration the SW560 contactors are deemed non-serviceable, therefore contact kits are not available.

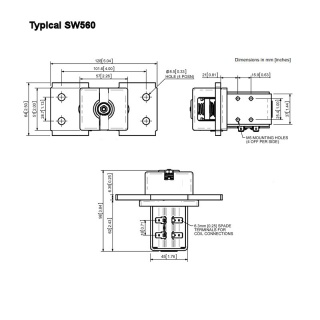

Dimensions
- Height including terminals and coil base cap: 98mm.
- Coil width: 45mm.
- Cap width: 57mm.
- Cap and fixed contact total width: 128mm.
- Fixed contact depth: 64mm.
About Continuous (CO.) SW560 Solenoids
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW560 is a compact contactor which can be busbar mounted vertically or horizontally, if mounted vertically the coil should be at the bottom.
| Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications

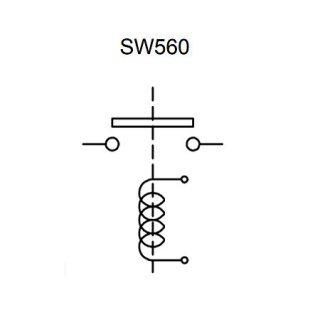

| Device Type | SW560 SPST NO |
| Voltage | 48V DC |
| Coil Type | Continuous |
| Amps | 600 amp |
| Coil Resistance (Ohms) | 150 |
| Pull-In Voltage (V) | 32.0 Maximum |
| Drop Out Voltage (V) | 12.0 Maximum |
| Coil Power Dissipation (W) | 15.36 |
| Typical Pull-In Time | 30ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | Less than 50mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 1.1kg |
| Application | Uninterrupted |
| Thermal Current Rating | 600A |
| Intermittent Current Rating: |
| 30% Duty | 1095A |
| 40% Duty | 950A |
| 50% Duty | 850A |
| 60% Duty | 775A |
| 70% Duty | 715A |
