SW210-194 Albright Single-acting Normally Closed Solenoid 24V Continuous

£111.62  Excl. VAT
  (£133.94 Inc. VAT)


Earn 111 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.40 kg


Model:  SW210-194
Bar Code:  DNA
Part Number:  SW210-194
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

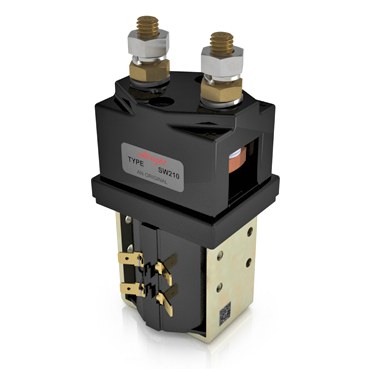

Albright SW210 single-acting 'Normally Closed' 24Vdc solenoid contactor, continuous.

  • The SW210 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • There is no mounting bracket supplied with this version.
  • Diode and resistor fitted, Positive at the top.
  • To be used vertically (with main contacts pointing upwards).

Associated products

  • 2028-551A Mounting bracket
  • 2155-202 Auxiliary switch kit

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.

About the Normally Closed Continuous (CO.) SW210 Solenoids

 Normally closed continuous contactors by design are for an ‘Always On’ line function and break only when the coil is energised, they break slower than intermittent solenoids and are recommended for prolonged contact periods.

Specifications

Device Type SW210 SPST NC
Voltage 24V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 32
Pull-In Voltage (V) 16.0 Maximum
Drop Out Voltage (V) 4.0 Maximum
Coil Power Dissipation (W) 18.00
Typical Voltage Drop Per Pole
across New Contacts at 250A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 1400g
Application Interrupted/Uninterupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
