SW202-2 Albright Double-acting Motor-reversing Solenoid 24V Intermittent

£271.50  Excl. VAT
  (£325.80 Inc. VAT)
 Excl. VAT

Earn 271 Loyalty Points
No stock


Weight:  3.24 kg





Model:  SW202-2
Bar Code:  DNA
Part Number:  SW202-2
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

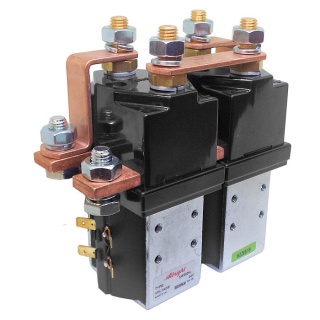

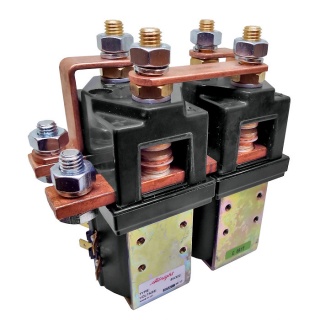

 Albright SW202-2 double-acting 24Vdc 250 Amps strapped pair contactor for hydraulic motor-reversing, intermittent coil.

  • Paired and linked 24 Volts DC single-pole, double-throw (SPDT) switch solenoids.
  • The SW202 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, warehouse forklifts, airport tractors, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2155-136.
  • Auxiliary switch kit part number: 2155-202 (1 kit does 1 x coil).
  • Fitted with magnetic blowouts as standard.

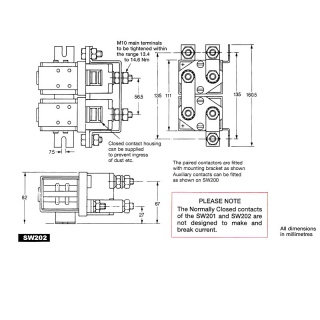

Dimensions

  • Height including terminals and coil base cap: 152mm.
  • Assembly width including bars and bracket: 160.5mm.
  • Cap width: 2 x 48mm.
  • Total depth including bracket: 82mm.

About The Intermittent SW202-2 Reversing Contactors

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they switch quicker than continuous solenoids and are not recommended for prolonged contact periods.

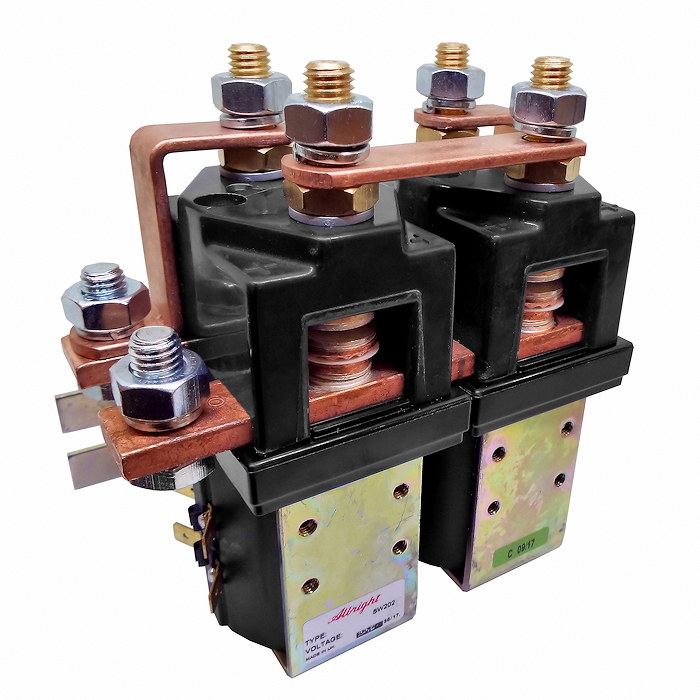

 The SW202 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW202 features single-pole, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

 The SW202 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

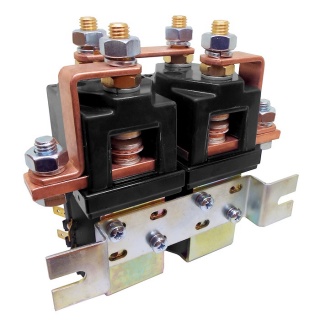

 The SW202 has M10 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Magnetic Blowouts

 These contactors are fitted with magnetic blowouts across contact gaps as standard. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

Specifications

Device Type Paired SPDT
Voltage 24V D.C.
Coil Type Intermittent
Amps 250A
Coil Resistance (Ohms) 18
Pull-In Voltage (V) 15.0 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 32.00
Typical Pull-In Time 40ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: 40mV
NC: 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 3.35kg
Application Uninterrupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 450A
40% Duty 390A
50% Duty 360A
60% Duty 320A
70% Duty 300A







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
