SW202-16 Albright Double Acting Motor Reversing Solenoid 24V Continuous

£203.76  Excl. VAT
  (£244.51 Inc. VAT)


Earn 203 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  3.24kg


Model:  SW202-16
Part Number:  SW202-16
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

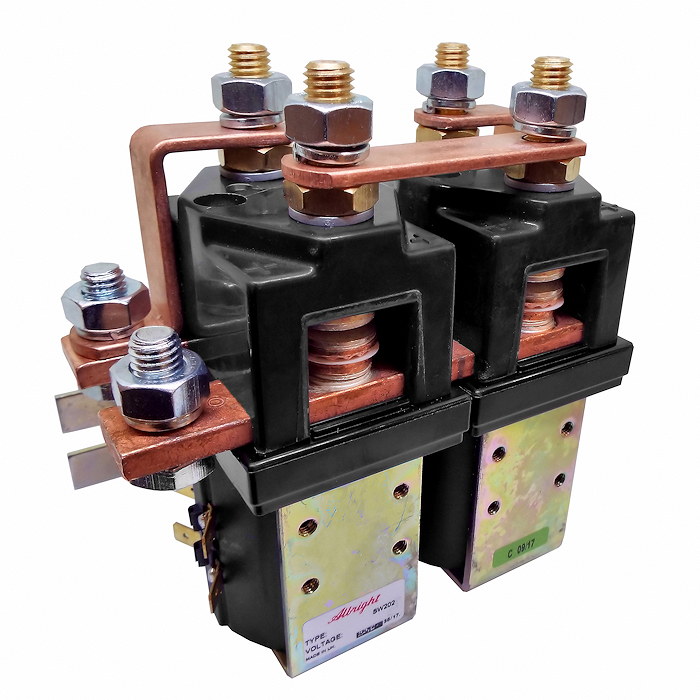

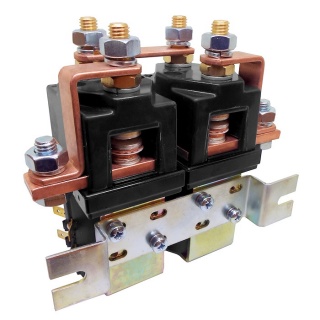

 SW202-16 double-acting strapped pair solenoid contactor 24V continuous.

  • Double-acting strapped pair 24-volt dc contactor for motor reversing.
  • The SW202 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, warehouse forklifts, airport tractors, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2155-136.
  • Auxiliary switch kit part number: 2155-202 (1 kit does 1 x coil).
  • Fitted with magnetic blowouts as standard.

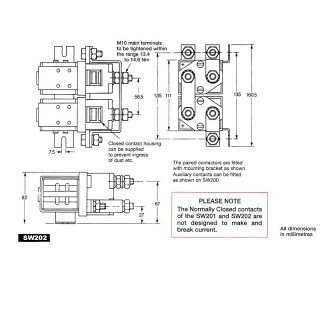

Dimensions

  • Height including terminals and coil base cap: 152mm.
  • Assembly width including bars and bracket: 160.5mm.
  • Cap width: 2 x 48mm.
  • Total depth including bracket: 82mm.

About the Continuous SW202-16 Reversing Contactors

 Continuous contactors by design are predominantly for drive functions on vehicles; they switch slower than intermittent solenoids and are recommended for prolonged contact periods.

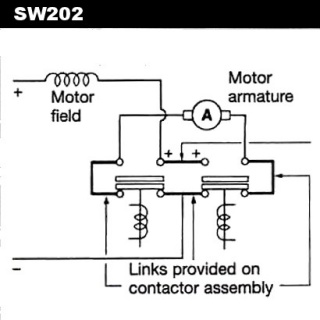

 The SW202 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW202 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

 The SW202 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW202 has M10 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Magnetic Blowouts

 These contactors are fitted with magnetic blowouts across contact gaps as standard. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts can make the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

Specifications

Device Type SW202 - Paired Single Pole Double Throw Contactor
Voltage 24V D.C.
Coil Type Continuous
Amps 250A
Coil Power Dissipation 13 - 21 Watts
Typical Pull-In Time 40ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: 40mV
Normally Closed: 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 3.35kg
Application Uninterrupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 450A
40% Duty 390A
50% Duty 360A
60% Duty 320A
70% Duty 300A



Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.
