SW182-4 Albright Double Acting Motor Reversing Solenoid 24V Continuous

£134.36  Excl. VAT
  (£161.23 Inc. VAT)


Earn 134 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  1.83kg


Model:  SW182-4
Part Number:  SW182-4
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  150A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back ordering is available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

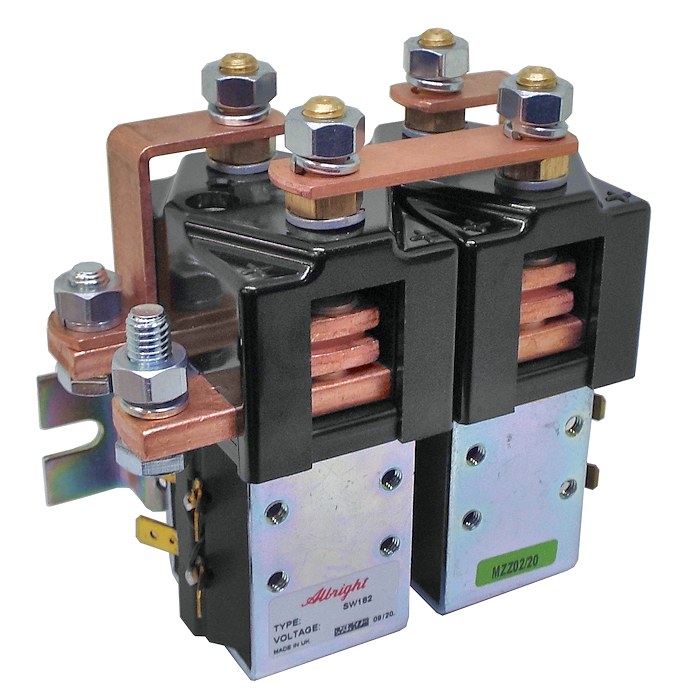

 SW182-4 double acting strapped pair solenoid contactor 24V continuous.

  • Double acting strapped pair 24 volt dc contactor for motor reversing.
  • The SW182 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2180-44.
  • Auxiliary switch kit part number: 2180-796 (1 kit does 1 x coil).

Dimensions

  • Height including terminals and coil base cap: 121.5mm.
  • Coil width including bars and bracket: 124.5mm.
  • Cap width: 2 x 40mm.
  • Total depth including bracket: 66mm.

About the Continuous SW182-4 Reversing Contactors

 Continuous contactors by design are predominantly for drive functions on vehicles; they make and break slower than intermittent solenoids, and are recommended for prolonged contact periods.

 The SW182 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW182 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.

 The SW182 main contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeSW182 - Paired Single Pole Double Throw Contactor
Voltage24V D.C.
Coil TypeContinuous
Amps150A
Coil Power Dissipation10 - 15 Watts
Typical Pull-In Time30ms
Typical Voltage Drop per pole
across New Contacts at 100A
Normally Open: 30mV
Normally Closed: 40mV
Operating Ambient Temperature-40 to +60℃ (guide)
Guideline Weight1.68kg
ApplicationUninterrupted
Thermal Current Rating150A
Intermittent Current Rating:
30% Duty275A
40% Duty240A
50% Duty225A
60% Duty200A
70% Duty180A
