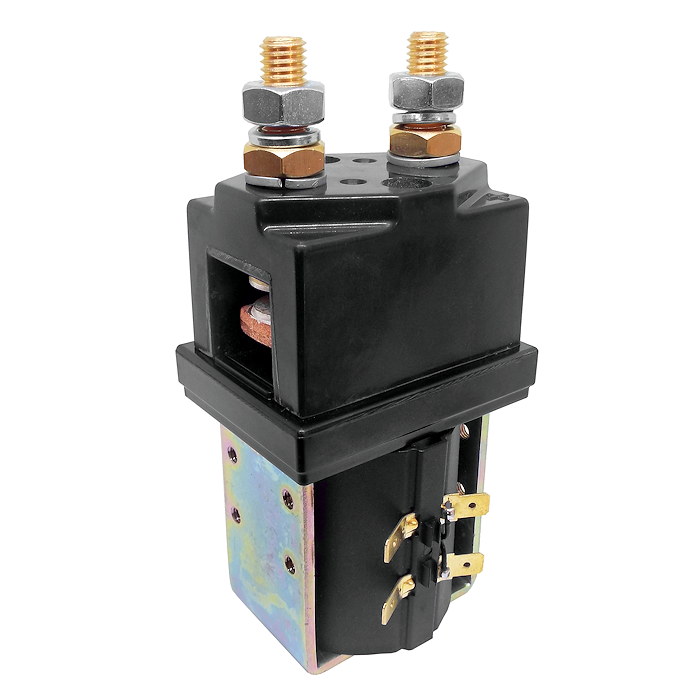

SW200N-29 Albright Single Acting Solenoid Contactor 24V Continuous

£72.46  Excl. VAT
  (£86.95 Inc. VAT)


Earn 72 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  1.35kg


Model:  SW200N-29
Part Number:  SW200N-29
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright SW200N-29 single acting 24V contactor continuous.

  • The SW200N series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2155-99.
  • Auxiliary switch kit part number: 2155-202.
  • This product is WITHOUT the magnetic blowout feature.

Dimensions

  • Height including terminals and coil base cap: 153mm.
  • Coil width: 58.5mm.
  • Cap width: 67mm.
  • Cap depth: 48mm.

About Continuous (CO.) SW200N Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW200N has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200N is suitable for switching Resistive, Capacitive and Inductive loads.

 The SW200N features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW200N has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeSW200N SPST NO
Voltage24V D.C.
Coil TypeContinuous
Amps250 amp
Coil Power Dissipation13 - 21 Watts
Typical Pull-In Time40ms
Typical Voltage Drop per pole
across New Contacts at 100A
40mV
Operating Ambient Temperature-40 to +60℃
Weight1.35Kg
ApplicationInterrupted - Uninterrupted
Thermal Current Rating250A
Intermittent Current Rating:
30% Duty450A
40% Duty390A
50% Duty360A
60% Duty320A
70% Duty300A
