SW200N-436 Albright Single-acting Solenoid Contactor 110V Continuous

£99.28  Excl. VAT
  (£119.14 Inc. VAT)
 Excl. VAT

Earn 99 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.35 kg


Model:  SW200N-436
Bar Code:  DNA
Part Number:  SW200N-436
Brand:  Albright
Colour:  Black
Voltage:  110V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

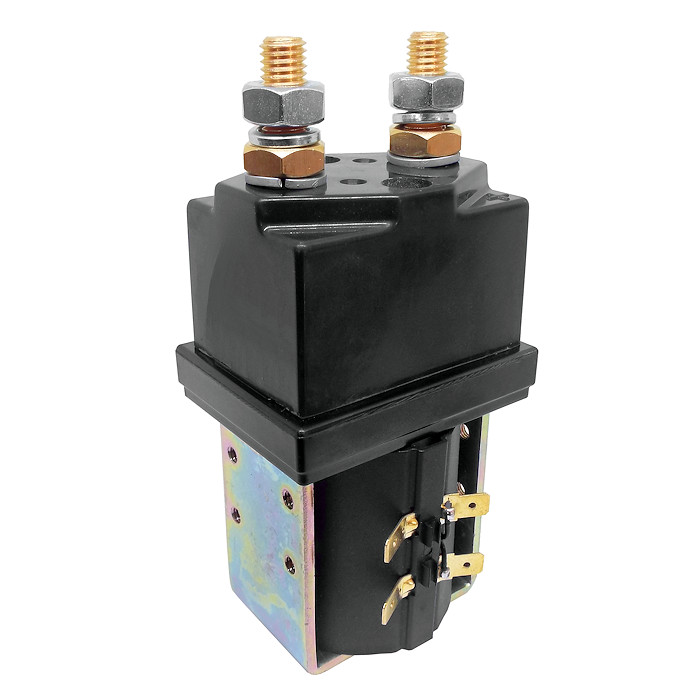

Albright SW200N-436 110Vdc 250 Amps single-acting SPST contactor with an enclosed top cover and without blowout, continuous.

  • The SW200N series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2155-99.
  • Auxiliary switch kit part number: 2155-202.
  • This product is without the magnetic blowout feature.
  • Enclosed top cover 2155-3J fitted.
  • Coil insulators fitted.

Dimensions

  • Height including terminals and coil base cap: 153mm.
  • Coil width: 58.5mm.
  • Cap width: 67mm.
  • Cap depth: 48mm.

About Continuous (CO.) SW200N Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW200N has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200N is suitable for switching Resistive, Capacitive and Inductive loads.

 The SW200N features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200N has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 110V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 600
Pull-In Voltage (V) 80.0 Max.
Drop Out Voltage (V) 28.0 Max.
Coil Power Dissipation (W) 20.17
Typical Pull-In Time 40ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 1.35Kg
Application Uninterrupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 450A
40% Duty 390A
50% Duty 360A
60% Duty 320A
70% Duty 300A
