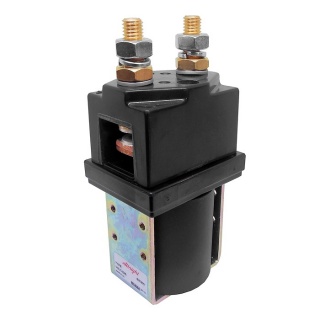

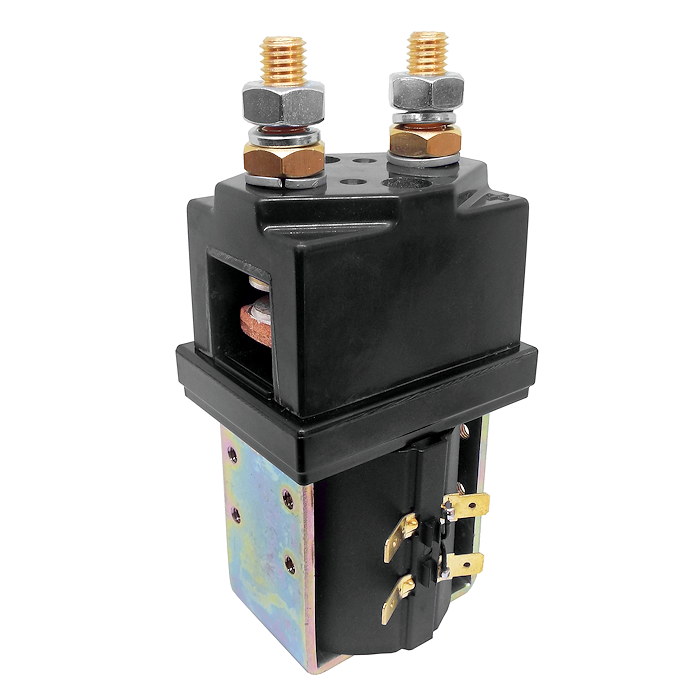

Albright SW200N-2 24Vdc 250A single-acting contactor without blowouts, intermittent.
- The SW200N series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- The contactors are compact in size and are fully serviceable, with a range of spare parts available.
- Repair contact kit part number: 2155-99.
- Auxiliary switch kit part number: 2155-202.
- This product is without the magnetic blowout feature.
Dimensions

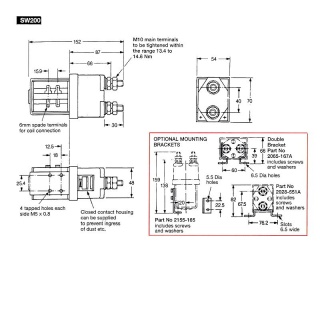

- Height including terminals and coil base cap: 153mm.
- Coil width: 58.5mm.
- Cap width: 67mm.
- Cap depth: 48mm.
About Intermittent (Int.) SW200N Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW200N has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200N is suitable for switching Resistive, Capacitive and Inductive loads.
The SW200N features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200N has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.
Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications

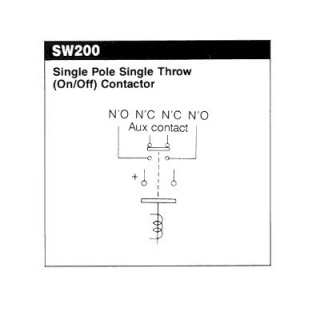

Device Type | SPST NO |
Voltage | 24V D.C. |
Coil Type | Intermittent |
Amps | 250 Amps |
Coil Resistance (Ohms) | 18 |
Pull-In Voltage (V) | 15.0 Max. |
Drop Out Voltage (V) | 6.0 Max. |
Coil Power Dissipation (W) | 32.00 |
Typical Pull-In Time | 40ms |
Typical Voltage Drop Per Pole Across New Contacts At 100A | 40mV |
Operating Ambient Temperature | -40 to +60℃ |
Weight | 1.35Kg |
Application | Uninterrupted |
Thermal Current Rating | 250A |
Intermittent Current Rating: |
30% Duty | 450A |
40% Duty | 390A |
50% Duty | 360A |
60% Duty | 320A |
70% Duty | 300A |
