SW200A-252 Albright Single-acting Solenoid Contactor - 72-80V Prolonged
£129.32 Excl. VAT (£155.18 Inc. VAT)
Excl. VAT
Earn 129 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 1.38 kg
Model: SW200A-252
Bar Code: DNA
Part Number: SW200A-252
Brand: Albright
Colour Black
Voltage 72-80V DC
Amperage 250A
Material Copper/Silver/Bakelite
Coil type Prolonged (PO)
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

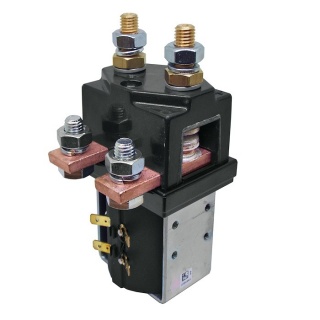

Albright SW200A-252 72-80Vdc 250A single-acting contactor with an auxiliary microswitch fitted, prolonged.
- The SW200 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- The contactors are compact in size and are fully serviceable, with a range of spare parts available.
- Repair contact kit part number 2155-99.
- Auxiliary switch kit part number: 2155-202.
- This product has the magnetic blowout feature as standard.
- Auxiliarry operation to be before main contacts close.
Dimensions
- Height including terminals and coil base cap: 153mm.
- Coil width: 58.5mm.
- Cap width: 67mm.
- Cap depth: 48mm.
Magnetic Blowouts
The contactors are double-break and fitted with magnetic blowouts across both contact gaps as standard. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.
About Prolonged (PO.) SW200 Solenoids
Prolonged (PO) use, up to 90% duty cycle and up to 54 minutes of continuous energisation. The coil is more powerful than continuous and weaker than intermittent equivalent. The return spring is stronger than continuous but weaker than intermittent.
The SW200 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW200 features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | SPST NO |
| Voltage | 72-80V D.C. |
| Coil Type | Prolonged |
| Amps | 250 Amps |
| Coil Resistance (Ohms) | 245 |
| Pull-In Voltage (V) | 48.0 Max. |
| Drop Out Voltage (V) | 18.0 Max. |
| Coil Power Dissipation (W) | 21.6 (72V), 26.12 (80V) |
| Typical Pull-In Time | 40ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 1.35Kg |
| Application | Uninterrupted |
| Thermal Current Rating | 250A |
| Intermittent Current Rating: |
| 30% Duty | 450A |
| 40% Duty | 390A |
| 50% Duty | 360A |
| 60% Duty | 320A |
| 70% Duty | 300A |
