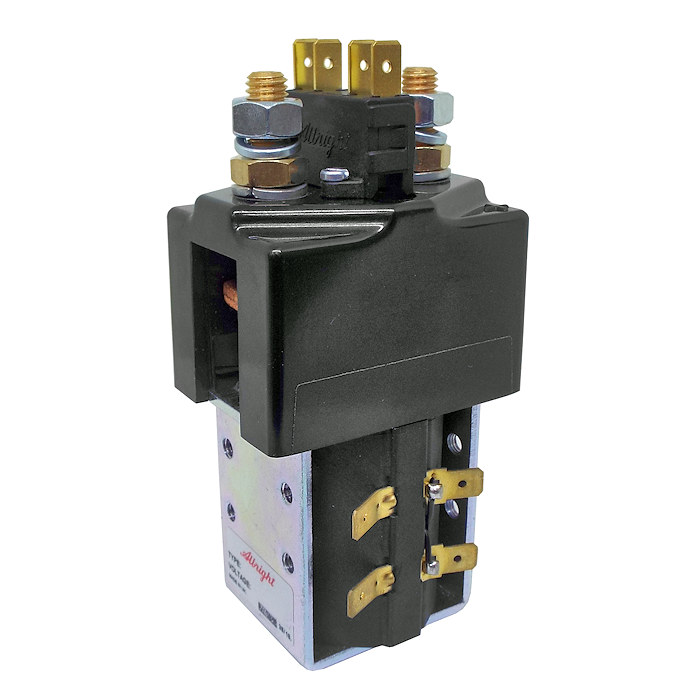

SW185AB-129 Albright 145V DC Single-acting Normally Closed Continuous Solenoid

£90.70  Excl. VAT
  (£108.84 Inc. VAT)
 Excl. VAT

Earn 90 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  650 g





Model:  SW185AB-129
Bar Code:  DNA
Part Number:  SW185AB-129
Brand:  Albright
Colour:  Black
Voltage:  145V DC
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 SW185AB-129 single-acting 'Normally Closed' 145V contactor, continuous.

  • The SW185 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Top hat mounting bracket 2159-47 is fitted to this unit (Right-hand side) as standard.
  • Diode fitted, positive at the top.
  • Coil insulators fitted.

Dimensions

  • Height including terminals and coil base cap (excluding switch): 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

About Continuous Normally Closed (CO.) SW185 Solenoids

 Normally Closed continuous contactors by design are for an ‘Always made’ line function and break only when the coil is energised, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 Please note: Normally Closed contacts are not suited to make and break load.

Specifications

Device Type SW185 SPST NC
Voltage 145Vdc
Coil Type Continuous
Amps 150 Amps
Coil Resistance (Ohms) 1850
Pull-In Voltage (V) 105.0 Maximum
Drop Out Voltage (V) 36.0 Maximum
Coil Power Dissipation (W) 11.36
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 650g
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
