SU80-5388MP Albright Single-acting 24V 150A Contactor - Intermittent
£51.79 Excl. VAT (£62.15 Inc. VAT)
Excl. VAT
Earn 51 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 350 g
Model: SU80-5388MP
Bar Code: DNA
Part Number: SU80-5388MP
Brand: Albright
Colour: Black
Voltage: 24V DC
Amperage: 150A
Material: Copper/Silver/Bakelite/Steel
Coil type: Intermittent
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

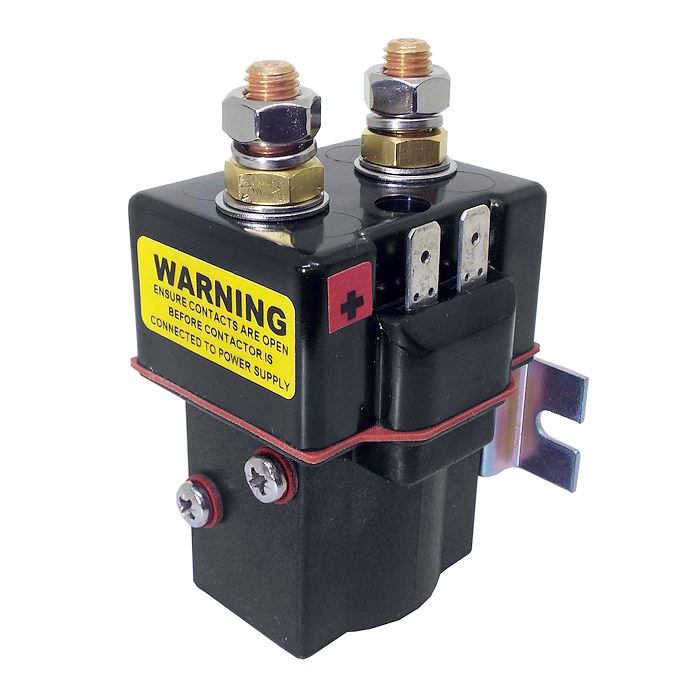

Albright IP66 protected SU80-5388MP single-acting 24 Volts DC 150 magnetically latched contactor with Silver-alloy tips, intermittent.
- The SU80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- Due to the sealed nature of this contactor, no repair kits are available.
- Fitted with a top hat mounting bracket.
Dimensions
- Height including terminals and coil base cap: 94mm.
- Cap width: 53mm.
- Cap depth (including coil terminals): 48mm.
About Intermittent (Int.) SU80 Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
Magnetic Latching: The contact position is secured with the use of a permanent magnet within the coil assembly. The coil requires a pulse(~500ms) to close the contacts, and a reverse polarity pulse (~500ms) to operate the armature and open the contacts, but otherwise remains in the last energised state without the need for power. It should be noted therefore these are not failsafe.
The SU80 is an up-rated version of the SW80 Contactor designed for Interrupted and Uninterrupted loads. The SU80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the supplied mounting bracket. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | SU80 Magnetic
Latching Contactor |
| Voltage | 24V D.C. |
| Coil Type | Intermittent |
| Amps | 150 Amps |
| Coil Resistance (Ohms) | 29 |
| Pull-In Voltage (V) | 12 Maximum |
| Drop Out Voltage (V) | 12 Maximum |
| Coil Power Dissipation (W) | 19.86 |
| Typical Pull-In Time | 20ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 350g |
| Application | Interrupted | Uninterrupted |
| Thermal Current Rating | 150A | 200A |
| Intermittent Current Rating: |
| 30% Duty | 275A | 365A |
| 40% Duty | 235A | 315A |
| 50% Duty | 210A | 280A |
| 60% Duty | 190A | 260A |
| 70% Duty | 180A | 240A |
