SU60B-2355 Albright 72V-80V DC Single-acting Solenoid Continuous 100A - With Blowouts

SU60B-2355 Albright 72V-80V DC Single-acting Solenoid Continuous 100A - With Blowouts
SU60B-2355 Albright 72V-80V DC Single-acting Solenoid Continuous 100A - With Blowouts
SU60B-2355 Albright 72V-80V DC Single-acting Solenoid Continuous 100A - With Blowouts
SU60B-2355 Albright 72V-80V DC Single-acting Solenoid Continuous 100A - With Blowouts
£24.70 Excl. VAT
(£29.64 Inc. VAT)
Earn 24 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SU60B-2355
Bar Code
DNA
Part Number
SU60B-2355
Brand
Albright
Colour
Black
Voltage
72-80V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Continuous
Ship Weight
250 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

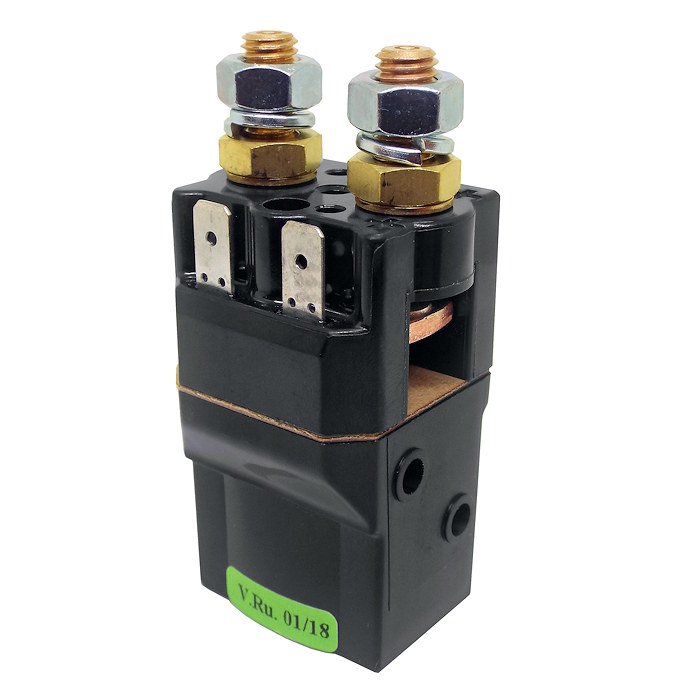

 Albright SU60B-2355 series miniature 72 Volts to 80 Volts DC 100 Amps single-acting contactor, continuous.

  • Albright SU60B series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

Magnetic Blowouts

 These open case contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SU60B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SU60B Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SU60B features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU60B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
72-80V D.C.
Coil Type
Continuous
Amps
100A
Coil Resistance (Ohms)
1030
Pull In Voltage (V)
48.0 Maximum
Drop Out Voltage (V)
20.0 Maximum
Coil Power Dissipation (W)
5.03
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 50mV
Operating Ambient Temperature
-40 to +60℃ (guide)
Guideline Weight
217g
Application
Uninterrupted
Thermal Current Rating
100A
Intermittent Current Rating

30% Duty
180A
40% Duty
160A
50% Duty
140A
60% Duty
130A
70% Duty
120A




Delivery

UK Mainland Postage

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.


International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
