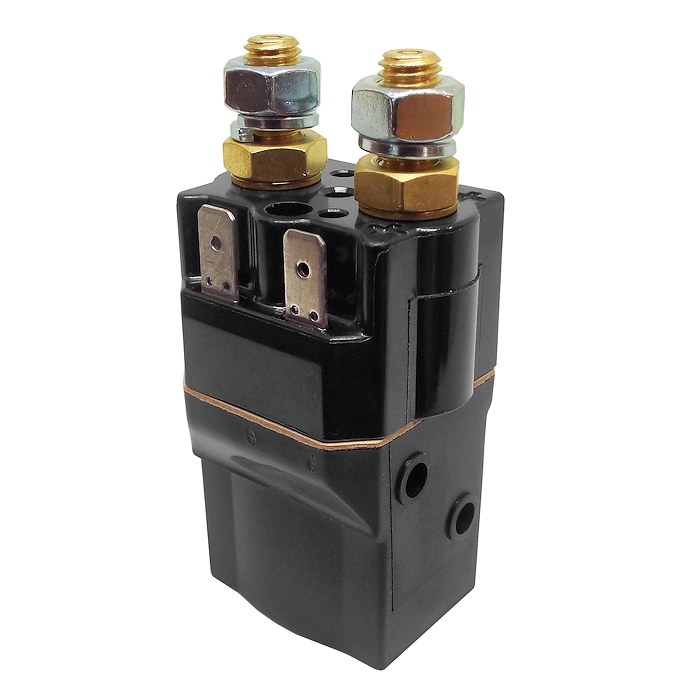

SU60-2355 Albright 72V-80V DC Single Acting Miniature Solenoid Continuous 100A

£18.92  Excl. VAT
  (£22.70 Inc. VAT)


Earn 18 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  210g


Model:  SU60-2355
Part Number:  SU60-2355
Brand:  Albright
Colour:  Black
Voltage:  72-80V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 SU60-2025 series miniature 72 volt to 80 volt dc 100 amp single acting contactor.

  • Albright SU60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ best quality materials: phenolic contact housings, silver alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

About Continuous (CO.) SU60 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SU60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU60 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeSU60 - Single Pole Single Throw Contactor
Voltage72-80V D.C.
Coil TypeContinuous
Amps100A
Coil Power Dissipation5 - 7 Watts
Typical Pull-In Time15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 50mV
Operating Ambient Temperature-40 to +60℃ (guide)
Guideline Weight217g
ApplicationInterrupted - Uninterrupted
Thermal Current Rating100A
Intermittent Current Rating:
30% Duty180A
40% Duty160A
50% Duty140A
60% Duty130A
70% Duty120A
