SU60A-2483 Albright 14V DC Single-acting Miniature Solenoid Continuous 100A

SU60A-2483 Albright 14V DC Single-acting Miniature Solenoid Continuous 100A
SU60A-2483 Albright 14V DC Single-acting Miniature Solenoid Continuous 100A
SU60A-2483 Albright 14V DC Single-acting Miniature Solenoid Continuous 100A
SU60A-2483 Albright 14V DC Single-acting Miniature Solenoid Continuous 100A
£26.87 Excl. VAT
(£32.24 Inc. VAT)
Earn 26 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SU60A-2483
Bar Code
DNA
Part Number
SU60A-2483
Brand
Albright
Colour
Black
Voltage
14V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Continuous
Weight
210 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

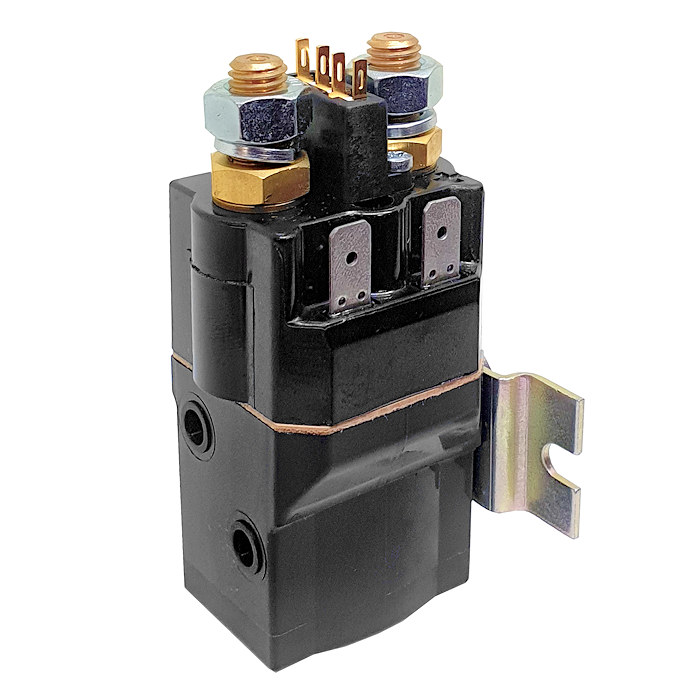

 Albright SU60A-2483 series miniature 14 Volts DC 100 Amps single-acting contactor with auxiliary microswitch, continuous.

  • Albright SU60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.
  • Top hat mounting bracket 3060-94 fitted right-hand side.
  • Fitted with auxiliary microswitch 3060-401.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.
  • 3060-401 replacement microswitch.

About Continuous (CO.) SU60 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SU60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU60 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
14V D.C.
Coil Type
Continuous
Amps
100A
Coil Resistance (Ohms)
31
Pull In Voltage (V)
9.0 Maximum
Drop Out Voltage (V)
3.5 Maximum
Coil Power Dissipation (W)
6.32
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 50mV
Operating Ambient Temperature
-40 to +60℃ (guide)
Guideline Weight
217g
Application
Uninterrupted
Thermal Current Rating
100A
Intermittent Current Rating

30% Duty
180A
40% Duty
160A
50% Duty
140A
60% Duty
130A
70% Duty
120A
