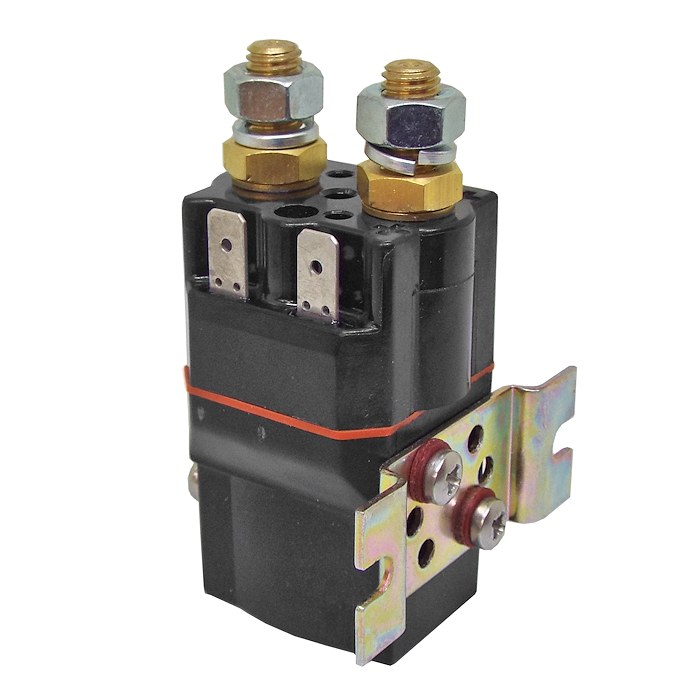

SU60-TBC8 Albright 72-80V DC Single-acting Miniature Solenoid Intermittent 100A

£22.58  Excl. VAT
  (£27.10 Inc. VAT)
 Excl. VAT

Earn 22 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  210 g





Model:  SU60-TBC8
Bar Code:  DNA
Part Number:  SU60-TBC8
Brand:  Albright
Colour:  Black
Voltage:  72-80V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright SU60 series miniature 72 to 80 Volts DC 100 Amps single-acting contactor, sealed to IP66, intermittent.

  • The SU60P is a high rated freestanding compact contactor following the established design of the SW60P. It is sealed to IP66 and has been designed for direct current loads in more arduous environments.
  • Devised for both interrupted and uninterrupted applications, the SU60P is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include motors as used on small electric vehicles and hydraulic power packs.
  • Due to its sealed nature and low cost, repair kits are not available for the SU60P.

Dimensions

  • Height including terminals and coil base cap: 84mm.
  • Coil width: 36mm.
  • Cap width: 36mm.
  • Depth: 33mm.

About Intermittent (INT.) SU60P Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SU60P features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. It features an enclosed top cover and offers environmental protection to IP66. Mounted using supplied bracket, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST Contactor
Voltage 72-80V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 580
Pull-In Voltage (V) 44.0 Maximum
Drop Out Voltage (V) 20.0 Maximum
Coil Power Dissipation (W) 8.94
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 50mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 217g
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 180A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
