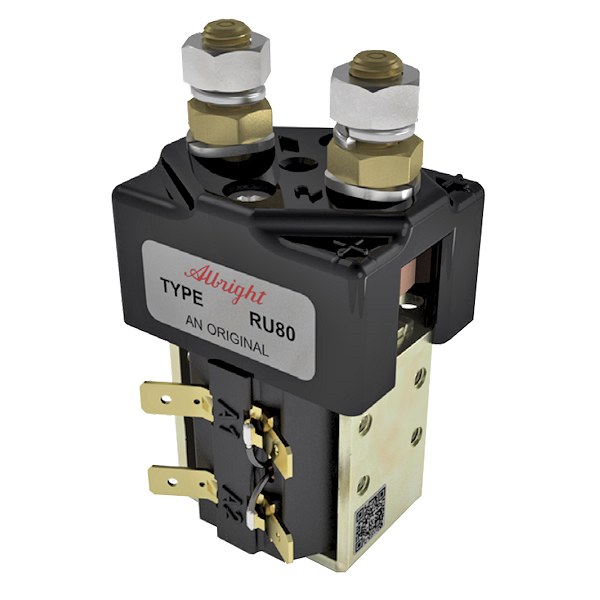

RU80-5011 Albright Single-acting 24V 200A Contactor - Intermittent

£36.34  Excl. VAT
  (£43.61 Inc. VAT)
 Excl. VAT

Earn 36 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  390 g


Model:  RU80-5011
Bar Code:  DNA
Part Number:  RU80-5011
Brand:  Albright
Colour  Black
Voltage  24V DC
Amperage  200A
Material  Copper/Silver/Bakelite/Steel
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright RU80-5011 single-acting 24Vdc 200 Amps solenoid contactor, intermittent.

  • The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary. Developed for Uninterrupted current applications the RU80 is typically used in line contactors or Power Distribution Systems.
  • Auxiliary switch kit part number: 2070-124.
  • Contact repair kit part number: 2073-361

Dimensions

  • Height including terminals and coil base cap: 91mm.
  • Coil width: 40mm.
  • Cap width: 50mm.
  • Cap depth: 49mm.

About Intermittent (Int.) RU80 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M4 tapped holes in the switch frame together with an available range of mounting brackets sold separately. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 24V D.C.
Coil Type Intermittent
Amps 200 Amps
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 14.5 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 200A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Uninterrupted
Thermal Current Rating 200A
Intermittent Current Rating:
30% Duty 365A
40% Duty 315A
50% Duty 280A
60% Duty 260A
70% Duty 240A
