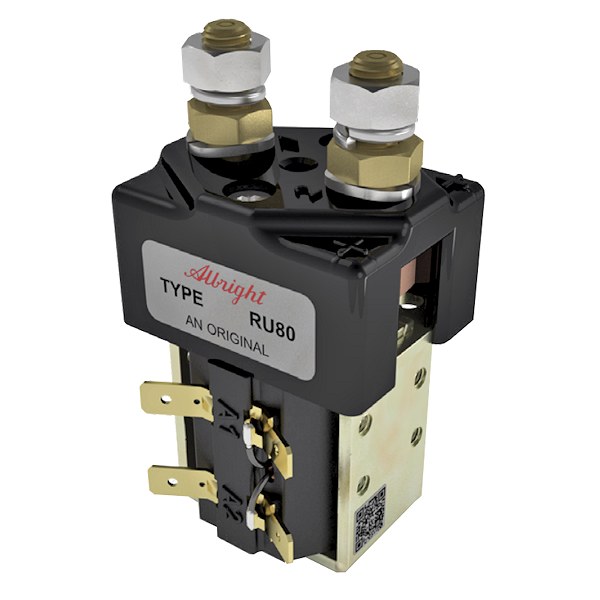

RU80-5010 Albright Single-acting 24V 200A Contactor - Continuous

RU80-5010 Albright Single-acting 24V 200A Contactor - Continuous
RU80-5010 Albright Single-acting 24V 200A Contactor - Continuous
RU80-5010 Albright Single-acting 24V 200A Contactor - Continuous
£37.79 Excl. VAT
(£45.35 Inc. VAT)
Earn 37 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
RU80-5010
Bar Code
DNA
Part Number
RU80-5010
Brand
Albright
Colour
Black
Voltage
24V DC
Amperage
200A
Material
Copper/Silver/Bakelite/Steel
Coil type
Continuous
 Intrastat HS Code  8536490000
Ship Weight
390 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright RU80-5010 single-acting 24Vdc 200 Amps solenoid contactor, continuous.

  • The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary. Developed for Uninterrupted current applications the RU80 is typically used in line contactors or Power Distribution Systems.
  • Auxiliary switch kit part number: 2070-124.
  • Contact repair kit part number: 2073-361

Dimensions

  • Height including terminals and coil base cap: 91mm.
  • Coil width: 40mm.
  • Cap width: 50mm.
  • Cap depth: 49mm.

About Continuous (CO.) RU80 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M4 tapped holes in the switch frame together with an available range of mounting brackets sold separately. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 24V D.C.
Coil Type Continuous
Amps 200 Amps
Coil Resistance (Ohms) 45
Pull-In Voltage (V) 16.0 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 12.80
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 200A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Uninterrupted
Thermal Current Rating 200A
Intermittent Current Rating:
30% Duty 365A
40% Duty 315A
50% Duty 280A
60% Duty 260A
70% Duty 240A
