RU80-5048 Albright Single-acting 12V 200A Contactor - Continuous
£36.34 Excl. VAT (£43.61 Inc. VAT)
Excl. VAT
Earn 36 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 390 g
Model: RU80-5048
Bar Code: DNA
Part Number: RU80-5048
Brand: Albright
Colour Black
Voltage 12V DC
Amperage 200A
Material Copper/Silver/Bakelite/Steel
Coil type Continuous
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

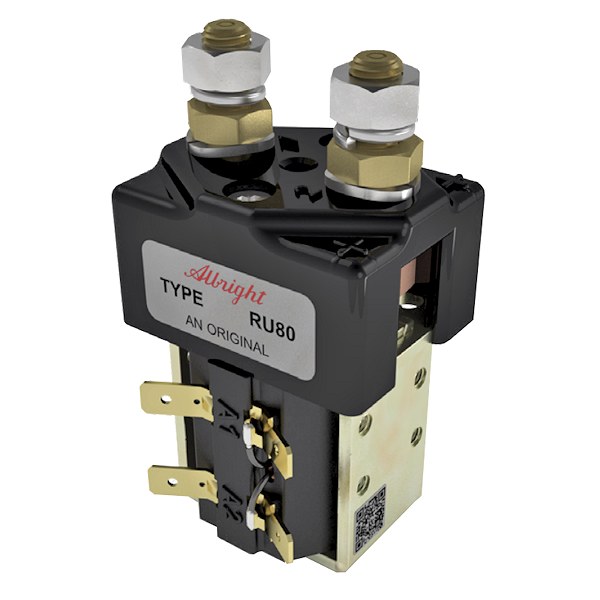

Albright RU80-5048 single-acting 12Vdc 200 Amps solenoid contactor, continuous.
- The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary. Developed for Uninterrupted current applications the RU80 is typically used in line contactors or Power Distribution Systems.
- Auxiliary switch kit part number: 2070-124.
- Contact repair kit part number: 2073-361

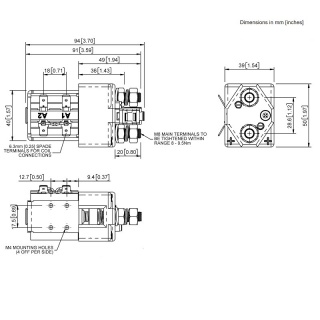

Dimensions
- Height including terminals and coil base cap: 91mm.
- Coil width: 40mm.
- Cap width: 50mm.
- Cap depth: 49mm.
About Continuous (CO.) RU80 Solenoids
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M4 tapped holes in the switch frame together with an available range of mounting brackets sold separately. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications

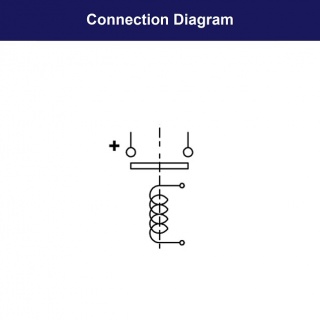

| Device Type | SPST NO |
| Voltage | 12V D.C. |
| Coil Type | Continuous |
| Amps | 200 Amps |
| Coil Resistance (Ohms) | 14 |
| Pull-In Voltage (V) | 8.0 Maximum |
| Drop Out Voltage (V) | 3.5 Maximum |
| Coil Power Dissipation (W) | 10.29 |
| Typical Pull-In Time | 20ms |
Typical Voltage Drop Per Pole
Across New Contacts At 200A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 350g |
| Application | Uninterrupted |
| Thermal Current Rating | 200A |
| Intermittent Current Rating: |
| 30% Duty | 365A |
| 40% Duty | 315A |
| 50% Duty | 280A |
| 60% Duty | 260A |
| 70% Duty | 240A |
