Durite 40A Green MCASE Cartridge Fuse | Re: 0-379-12

£2.76  Excl. VAT
  (£3.31 Inc. VAT)
RRP:  £3.10  Excl. VAT
Initial Savings:  £0.34
Earn 2 Loyalty Points
Available


Weight:  10 g





Model:  0-379-12
Bar Code:  5056119140132
Part Number:  0-379-12
Brand:  Durite
Colour:  Green
Voltage:  12V/24V DC
Amperage:  40A
Material:  Zinc Alloy/Thermoplastic

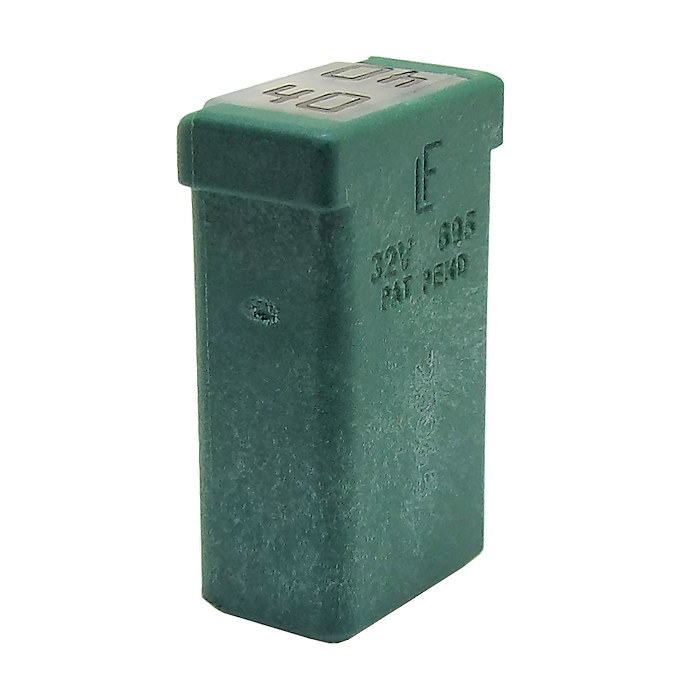

 Durite 12V-24Vdc Green 40 Amps automotive MCASE cartridge fuse.

  • Fuse Type: Vehicle fusebox plug-in fuse.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • Colour Coded: Green.
  • Continuous Rating: 40A.
  • Blow Rating: 80A.
  • Pack Quantity: 1 and 10 pieces.

Dimensions

  • Length: 17.5mm
  • Width (cap): 10.5mm
  • Depth: 6mm

About The Green 40A MCASE Cartridge Fuse

 The Durite Green 40 Amps MCASE cartridge-style fuse has female terminals for push-fit onto 2.8mm male terminals in fuse boxes. The miniaturized footprint allows for optimal use of space. It is a time-delayed 32Vdc maximum fuse designed to handle inrush currents.

 The ratings for 40A continuous use are based on a circuit's constant load being always on, and the 80A blow rating is based on intermittent circuit load.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always on (constant) or plugged in. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.
