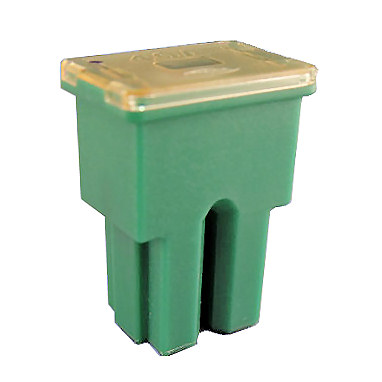

0-379-04 Green Female PAL Type Automotive Fuse 40A

£5.14  Excl. VAT
  (£6.17 Inc. VAT)
RRP:  £5.78  Excl. VAT
Initial Savings:  £0.64
Earn 5 Loyalty Points
Available


Weight:  10 g


Model:  0-379-04
Bar Code:  5056119110906
Part Number:  0-379-04
Brand:  Durite
Colour  Green
Voltage  12V/24V DC
Amperage  40A


 Durite green female 40 Amps PAL type automotive cartridge fuse.

  • Colour Coded: Green.
  • Voltage Rating: 32Vdc Maximum.
  • Continuous Rating 40A.
  • Blow Rating 80A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height: 32mm.
  • Cap: Width: 23mm.
  • Cap Depth: 16mm.

Plug-in Base

  • Width: 16mm.
  • Depth: 12.5mm.

About The Green 40A Plug-in Cartridge Fuse

 Durite replacement green 40 Amps plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 40A continuous use is based on a circuit constant load being always-on, the 80A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
