0-379-06 Yellow Female PAL Type Automotive Fuse 60A

0-379-06 Yellow Female PAL Type Automotive Fuse 60A
0-379-06 Yellow Female PAL Type Automotive Fuse 60A
£5.23 Excl. VAT
RRP £6.12 Excl. VAT
(£6.28 Inc. VAT)
Initial Savings
£0.89
Earn 5 Loyalty Points

Available
Model
0-379-06
Bar Code
5056119110920
Part Number
0-379-06
Brand
Durite
Colour
Yellow
Voltage
12V/24V DC
Amperage
60A
 Intrastat HS Code  8536109090
Ship Weight
10 g

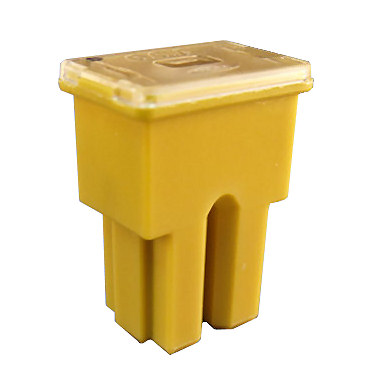

 Durite yellow female 60 Amps PAL type automotive cartridge fuse.

  • Colour Coded: Yellow.
  • Voltage Rating: 32Vdc Maximum.
  • Continuous Rating 60A.
  • Blow Rating 120A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height: 32mm.
  • Cap: Width: 23mm.
  • Cap Depth: 16mm.

Plug-in Base

  • Width: 16mm.
  • Depth: 12.5mm.

About The Yellow 60A Plug-in Cartridge Fuse

 Durite replacement yellow 60 Amps plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 60A continuous use is based on a circuit constant load being always-on, the 120A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
