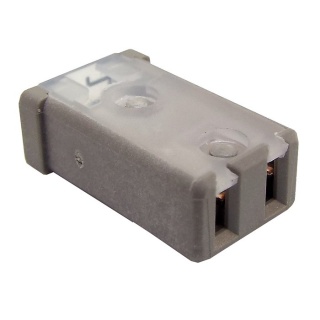

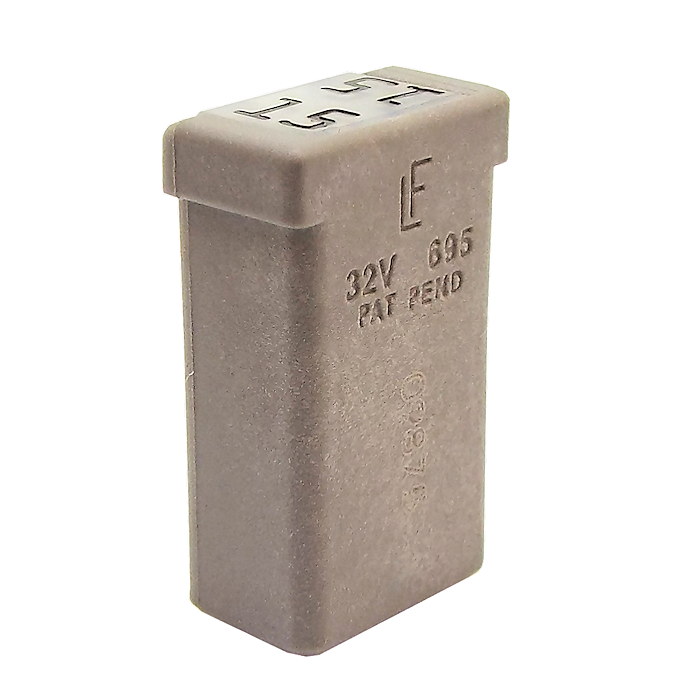

Durite 15A Grey MCASE Cartridge Fuse | Re: 0-379-08

£2.76  Excl. VAT
  (£3.31 Inc. VAT)
RRP:  £3.10  Excl. VAT
Initial Savings:  £0.34
Earn 2 Loyalty Points
Available


Weight:  10 g


Model:  0-379-08
Bar Code:  5056119140170
Part Number:  0-379-08
Brand:  Durite
Colour  Grey
Voltage  12V/24V DC
Amperage  15A
Material  Zinc Alloy/Thermoplastic


 Durite 12V-24Vdc Grey 15 Amps automotive MCASE cartridge fuse.

  • Fuse Type: Vehicle fusebox plug-in fuse.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • Colour Coded: Grey.
  • Continuous Rating: 15A.
  • Blow Rating: 30A.
  • Pack quantity: 1 and 10 pieces.

Dimensions

  • Length: 17.5mm
  • Width (cap): 10.5mm
  • Depth: 6mm

About The Grey 15A MCASE Cartridge Fuse

 The Durite Grey 15 Amps MCASE cartridge-style fuse has female terminals for push-fit onto 2.8mm male terminals in fuse boxes. The miniaturized footprint allows for optimal use of space. It is a time-delayed 32Vdc maximum fuse designed to handle inrush currents.

 The ratings for 15A continuous use are based on a circuit's constant load being always on, and the 30A blow rating is based on intermittent circuit load.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always on (constant) or plugged in. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.



Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Durite 20A Blue MCASE Cartridge Fuse | Re: 0-379-09
Durite 20A Blue MCASE Cartridge Fuse | Re: 0-379-09

Durite brand 20 Amps automotive MCASE cartridge fuse. Blue colour-coded fuses with a continuous rating of 20A and a blow rating of 40A.

Available
 Reference: 0-379-09 From:  £2.76
Durite 25A Natural MCASE Cartridge Fuse | Re: 0-379-10
Durite 25A Natural MCASE Cartridge Fuse | Re: 0-379-10

Durite brand 25 Amps automotive MCASE cartridge fuse. Neutral colour-coded fuses with a continuous rating of 25A and a blow rating of 50A.

Available
 Reference: 0-379-10 From:  £2.76
Durite 30A Pink MCASE Cartridge Fuse | Re: 0-379-11
Durite 30A Pink MCASE Cartridge Fuse | Re: 0-379-11

Durite brand 30 Amps automotive MCASE cartridge fuse. Pink colour-coded fuses with a continuous rating of 30A and a blow rating of 60A.

Available
 Reference: 0-379-11 From:  £2.76


Related Products
Durite 15A Blue MINI Blade or Spade Automotive Fuse | Re: 0-372-15
Durite 15A Blue MINI Blade or Spade Automotive Fuse | Re: 0-372-15

Durite Blue coloured 15A MINI automotive spade fuse. 11.0mm wide fuses with a length including the blades of 16.0mm, thickness: 4.0mm.

Available
 Reference: 0-372-15 From:  £3.33
Durite 20A Blue MCASE Cartridge Fuse | Re: 0-379-09
Durite 20A Blue MCASE Cartridge Fuse | Re: 0-379-09

Durite brand 20 Amps automotive MCASE cartridge fuse. Blue colour-coded fuses with a continuous rating of 20A and a blow rating of 40A.

Available
 Reference: 0-379-09 From:  £2.76
Durite 20mm 15A Radio Glass Fuses | Re: 0-373-15
Durite 20mm 15A Radio Glass Fuses | Re: 0-373-15

Durite standard 20mm radio glass fuse with nickel-plated brass caps. Rated 15A continuous use, with a 30A blow rating. Diameter: 5.0mm.

Available
 Reference: 0-373-15 From:  £1.98
Durite 25A Natural MCASE Cartridge Fuse | Re: 0-379-10
Durite 25A Natural MCASE Cartridge Fuse | Re: 0-379-10

Durite brand 25 Amps automotive MCASE cartridge fuse. Neutral colour-coded fuses with a continuous rating of 25A and a blow rating of 50A.

Available
 Reference: 0-379-10 From:  £2.76
Durite 2A Grey MINI Blade or Spade Automotive Fuse | Re: 0-372-02
Durite 2A Grey MINI Blade or Spade Automotive Fuse | Re: 0-372-02

Durite Grey coloured 2A MINI automotive spade fuse. 11.0mm wide fuses with a length including the blades of 16.0mm, thickness: 4.0mm.

Available
 Reference: 0-372-02 From:  £3.49

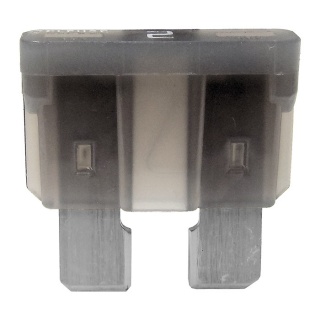

Durite 2A Grey Standard Automotive Blade Fuse | Re: 0-375-02
