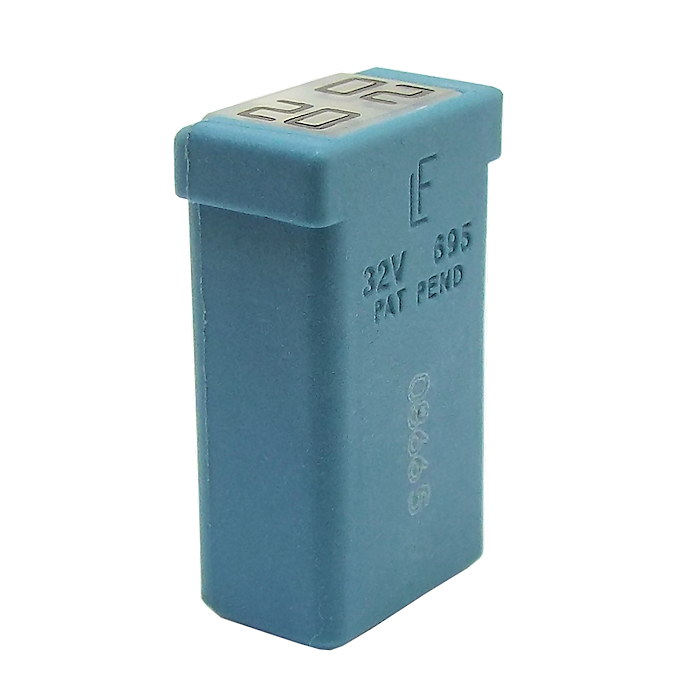

Durite 20A Blue MCASE Cartridge Fuse | Re: 0-379-09

£2.76  Excl. VAT
  (£3.31 Inc. VAT)
RRP:  £3.10  Excl. VAT
Initial Savings:  £0.34
Earn 2 Loyalty Points
Available


Weight:  10 g





Model:  0-379-09
Bar Code:  5056119140163
Part Number:  0-379-09
Brand:  Durite
Colour:  Blue
Voltage:  12V/24V DC
Amperage:  20A
Material:  Zinc Alloy/Thermoplastic


 Durite 12V-24Vdc Blue 20 Amps automotive MCASE cartridge fuse.

  • Fuse Type: Vehicle fusebox plug-in fuse.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • Colour Coded: Blue.
  • Continuous Rating: 20A.
  • Blow Rating: 40A.
  • Pack Quantity: 1 and 10 pieces.

Dimensions

  • Length: 17.5mm
  • Width (cap): 10.5mm
  • Depth: 6mm

About The Blue 20A MCASE Cartridge Fuse

 The Durite Blue 20 Amps MCASE cartridge-style fuse has female terminals for push-fit onto 2.8mm male terminals in fuse boxes. The miniaturized footprint allows for optimal use of space. It is a time-delayed 32Vdc maximum fuse designed to handle inrush currents.

 The ratings for 20A continuous use are based on a circuit's constant load being always on, and the 40A blow rating is based on intermittent circuit load.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always on (constant) or plugged in. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.
