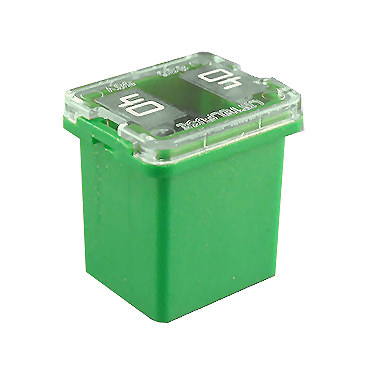

0-379-18 40A JCASE Automotive Low Profile Fuse Green

£4.18  Excl. VAT
  (£5.02 Inc. VAT)
RRP:  £4.70  Excl. VAT
Initial Savings:  £0.52
Earn 4 Loyalty Points
Available


Weight:  10 g


Model:  0-379-18
Bar Code:  5056119110982
Part Number:  0-379-18
Brand:  Durite
Colour  Green
Voltage  12V/24V DC
Amperage  40A
Material  Zinc Alloy/Thermoplastic


 Durite 12V-24Vdc low profile green female JCASE (895 Series) type cartridge automotive fuse for vehicle fuse boxes.

  • Fuse Type: plug-in cartridge fuse.
  • Voltage Rating: 32Vdc Maximum.
  • Colour Coded: Green.
  • Continuous Rating: 40A.
  • Blow Rating: 80A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height: 16mm.
  • Width: 12mm.
  • Depth: 10mm.

About The Low Profile Green 40A Plug-in JCASE Cartridge Fuse

 Durite replacement Green 40 Amps JCASE low profile plug-in fuses are for vehicle fuse boxes and panels and are used to replace a blown fuse position or to add to a vehicle's breakdown kit.

 The ratings for 40A continuous use are based on a circuit's constant load being always on, and the 80A blow rating is based on intermittent circuit load.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.
