0-379-16 25A JCASE Automotive Low Profile Fuse White

£3.74  Excl. VAT
  (£4.49 Inc. VAT)
RRP:  £4.31
Savings before Cart:  £0.57
Earn 3 Loyalty Points
Available


Weight:  10 g


Model:  0-379-16
Bar Code:  5056119110968
Part Number:  0-379-16
Brand:  Durite
Colour:  White
Voltage:  58V DC
Amperage:  25A
Material:  Zinc Alloy/Thermoplastic

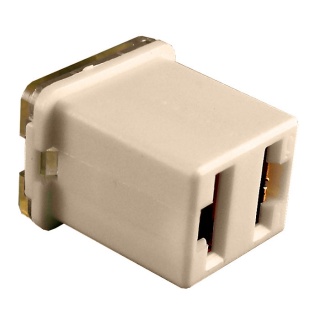

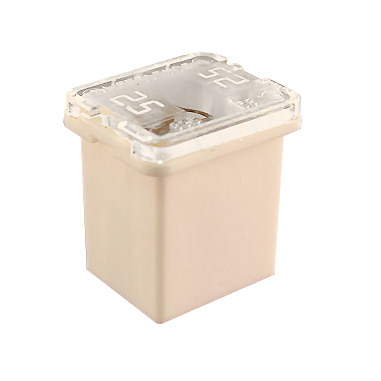

 Durite low profile white female JCASE™ (895 Series) type cartridge automotive fuse for vehicle fuseboxes.

  • Fuse Type: plug-in cartridge fuse.
  • Voltage Rating: 32Vdc Maximum.
  • Colour Coded: White.
  • Continuous Rating: 25A.
  • Blow Rating: 50A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height: 16mm.
  • Width: 12mm.
  • Depth: 10mm.

About the Low Profile White 25A Plug-in JCASE™ Cartridge Fuse

 Durite replacement white coloured 25 Amps JCASE™ low profile plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 25A continuous use is based on a circuit constant load being always-on, the 50A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
