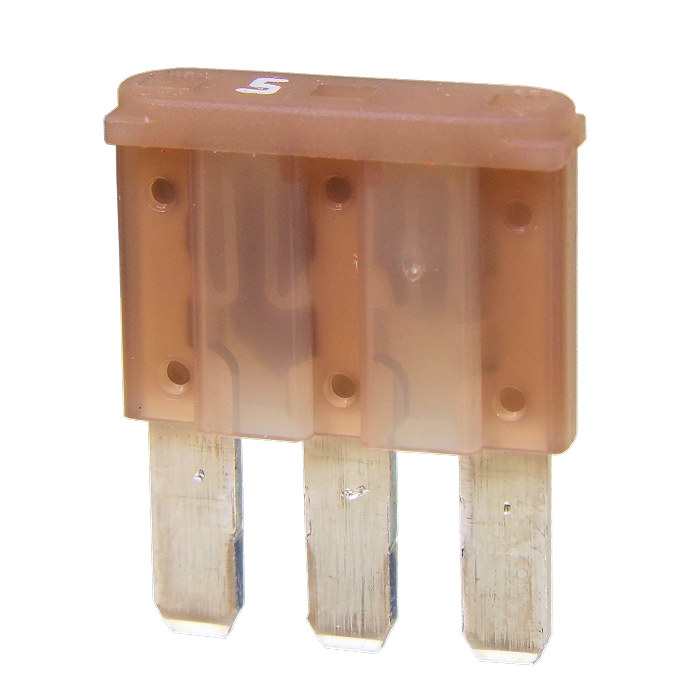

Durite Automotive 5A Tan MICRO3 Blade Fuse | Re: 0-371-55

£1.09  Excl. VAT
  (£1.31 Inc. VAT)
RRP:  £1.22  Excl. VAT
Initial Savings:  £0.13
Earn 1 Loyalty Points
Available


Weight:  10 g





Model:  0-371-55
Bar Code:  5056119140880
Part Number:  0-371-55
Brand:  Durite
Colour:  Tan
Voltage:  12V/24V DC
Amperage:  5A
Material:  Zinc Alloy/Silver/PA66


 Durite's MICRO3 Littelfuse 337 series micro spade fuses with two fuse elements.

  • MICRO3 3-blade fuse with two fuse elements and one common terminal.
  • Colour Coded: Tan
  • Continuous Rating: 5A
  • Blow Rating: 10A
  • Pack quantity: Single unit or a pack of 10.

Dimensions

  • Width: 14.4mm Maximum.
  • Length: 18mm.
  • Thickness: 4.2mm.

About The MICRO3 Blade Fuse

 Durite's Littelfuse 337 MICRO3 fuse has two fuse elements with a common center terminal. The sub-miniature design meets the need for more circuits to be protected while utilizing less space. The 3-spade fuse can cope with high temperatures in adverse environments, making the MICRO3 fuse a recommended choice for protection.

 The smaller and more compact type of fuse from the Durite automotive blade fuse family, the tan-coloured MICRO3 blade fuse, offers a 5 Amps continuous circuit load protection and a 10 Amps blow rating. At Arc Components Ltd, we offer the 337 Series MICRO3 blade fuses in four different amperages, ranging from 5A to 15A, with a 32Vdc rating.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent; therefore, the fuse is required to heat up before blowing.

Specifications

Type Double element fuse
Colour Code Tan
Continuous Rating 5A
Blow Rating 10A
Voltage Rating 32Vdc
Interrupting Ratings 1000A at 32Vdc
*Component Temperature Range -40˚C to +125˚C
**System Temperature Range -40˚C to +105˚C
105°C is a typical system-level temperature requirement.
Terminals Silver (Ag) plated zinc alloy, 2.8mm
Housing Material PA66
Conforms to SAE 2741 and ISO 8820-3 in reference to electrical, mechanical and environmental performance requirements.
