Durite Automotive 15A Blue MICRO3 Blade Fuse | Re: 0-371-65

£1.11 Excl. VAT

RRP ~~£1.30~~ Excl. VAT

(£1.33 Inc. VAT)

Initial Savings

£0.19

Earn 1 Loyalty Points

Select Option

Available

Model

0-371-65

Bar Code

5056119140941

Part Number

0-371-65

Brand

Durite

Colour

Blue

Voltage

12V/24V DC

Amperage

15A

Material

Zinc Alloy/Silver/PA66

Ship Weight

5 g

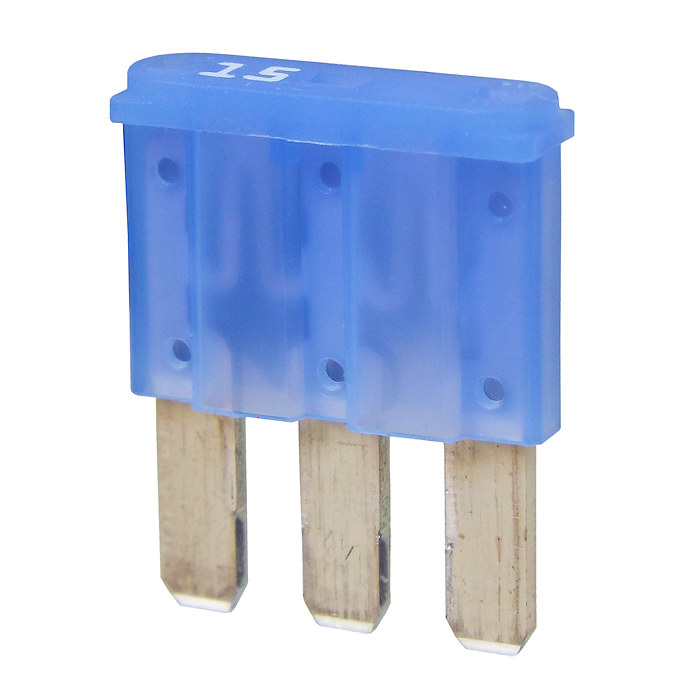

Durite's MICRO3 Littelfuse 337 series micro spade fuses with two fuse elements.

MICRO3 3-blade fuse with 2 fuse elements and one common terminal.
Colour Coded: Blue
Continuous Rating: 15A
Blow Rating: 30A
Pack quantity: Single unit or a pack of 10.

Dimensions

Width: 14.4mm Maximum.
Length: 18mm.
Thickness: 4.2mm.

About The MICRO3 Blade Fuse

Durite's Littelfuse 337 MICRO3 fuse has 2 fuse elements with a common center terminal. The sub-miniature design meets the need for more circuits to be protected while utilizing less space. The 3-spade fuse has the ability to cope with high temperatures in adverse environments, making the MICRO3 fuse a recommended choice for protection.

The smaller and more compact type of fuse from the Durite automotive blade fuse family, the blue-coloured MICRO3 blade fuse, offers 15 Amps continuous circuit load protection and a 30 Amps blow rating. At Arc Components Ltd, we offer the 337 Series MICRO3 blade fuses in four different amperages, ranging from 5A to 15A, with a 32Vdc rating.

Fuse Ratings

Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.

Specifications

Type

Double element fuse

Colour Code

Blue

Continuous Rating

15 Amp

Blow Rating

30 Amps - Intermittent

Voltage Rating

32Vdc

Interrupting Ratings

1000A at 32Vdc

Component Temperature Range

-40 degrees C to +125 degrees C

System Temperature Range

-40 degrees C to +105 degrees C 105 degrees C is a typical system-level temperature requirement.

Terminals

Silver (Ag) plated zinc alloy, 2.8mm

Housing Material

PA66

Conforms to

SAE 2741 and ISO 8820-3 in reference to electrical, mechanical and environmental performance requirements.
