Durite 20mm 3A Radio Glass Fuses | Re: 0-373-03

£1.84  Excl. VAT
  (£2.21 Inc. VAT)
RRP:  £2.12
Savings before Cart:  £0.28
Earn 1 Loyalty Points
Available


Weight:  20 g


Model:  0-373-03
Bar Code:  5056119109849
Part Number:  0-373-03
Brand:  Durite
Colour:  Clear
Voltage:  32V DC Max.
Amperage:  3A
Material:  Glass/Nickel/Brass

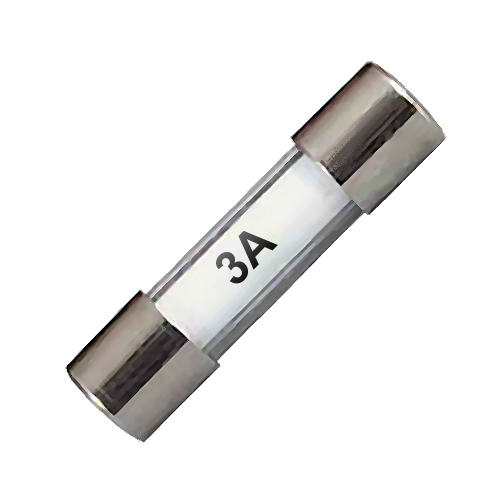

 Durite 20mm standard 3 Amps radio glass fuse for automotive electrical surge protection.

  • Glass encased fuse element with nickel-plated brass end caps.
  • Continuous Rating: 3A.
  • Blow Rating: 6A.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 and 50 pieces.

Dimensions

  • Total Length: 20.0mm
  • Total Diameter: 5.0mm

About The 3A 20mm Glass Radio Fuse

 The Durite classic style glass fuse with 5.0mm diameter nickel-plated brass caps are historically used for surge protection, usually found mounted on vehicle PCB's and when used inline on automotive cables and vehicle wiring.

 The ratings for 3A continuous use is based on a circuit constant load being always-on, the 6A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
