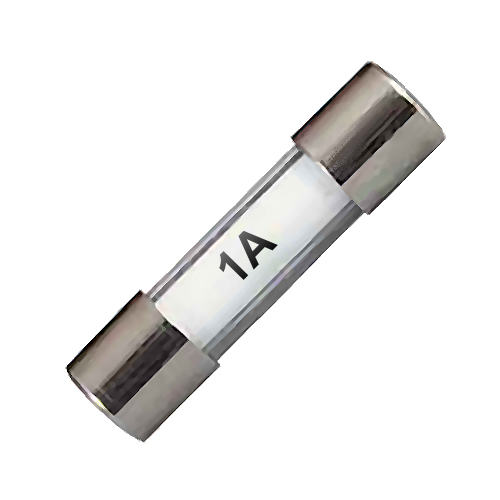

Durite 20mm 1A Radio Glass Fuses | Re: 0-373-01

£2.06  Excl. VAT
  (£2.47 Inc. VAT)
RRP:  £2.32  Excl. VAT
Initial Savings:  £0.26
Earn 2 Loyalty Points
Available


Weight:  20 g


Model:  0-373-01
Bar Code:  5056119109825
Part Number:  0-373-01
Brand:  Durite
Colour  Clear
Voltage  12V/24V DC
Amperage  1A
Material  Glass/Nickel/Brass


 Durite 20mm standard 1 Amp radio glass fuse for automotive electrical surge protection.

  • Glass-encased fuse element with nickel-plated brass end caps.
  • Continuous Rating: 1A.
  • Blow Rating: 2A.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 and 50 pieces.

Dimensions

  • Total Length: 20.0mm
  • Total Diameter: 5.0mm

About The 1A 20mm Glass Radio Fuse

 The Durite classic style glass fuse with 5.0mm diameter nickel-plated brass caps is historically used for surge protection, usually found mounted on vehicle PCBs and when used inline on automotive cables and vehicle wiring.

 The ratings for 1A continuous use are based on a circuit constant load being always-on, and the 2A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.
