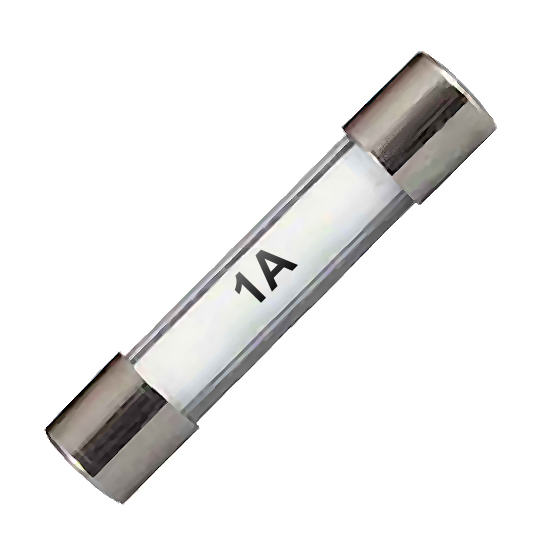

0-374-01 Pack of 10 32mm Standard Glass Fuses 1A
£2.53 Excl. VAT (£3.04 Inc. VAT)
RRP: £2.84 Excl. VAT
Initial Savings: £0.31
Earn 2 Loyalty Points
| |
Weight: 20 g
Model: 0-374-01
Bar Code: 5056119109986
Part Number: 0-374-01
Brand: Durite
Colour Clear
Voltage 12V/24V DC
Amperage 1A
Material Glass/Nickel/Brass
Durite 32mm standard 1 Amps glass fuse for automotive electrical surge protection.
- Glass encased fuse element with nickel-plated brass end caps.
- Continuous Rating: 1A.
- Blow Rating: 2A.
- Always check your equipment's manual before replacing fuses to determine which fuses you require.
- Pack Quantity: 10 pieces.
Dimensions
- Total Length: 32.0mm
- Total Diameter: 6.5mm
About The 1A Standard 32mm Glass Fuse
The Durite classic style glass fuse with 6.5mm diameter nickel-plated brass caps are historically used for surge protection, usually found mounted on vehicle PCB's and when used inline on automotive cables and vehicle wiring.
The ratings for 1A continuous use is based on a circuit constant load being always-on, the 2A blow rating is based on the circuit load being intermittent.
Fuse Ratings
Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
