DC182-878PL Albright 12V Motor-Reversing Contactor IP67 - Highly Intermittent

£149.34  Excl. VAT
  (£179.21 Inc. VAT)
 Excl. VAT

Earn 149 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.86 kg


Model:  DC182-878PL
Bar Code:  DNA
Part Number:  DC182-878PL
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  150A
Material  Copper/Silver/Bakelite
Coil type  Highly Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

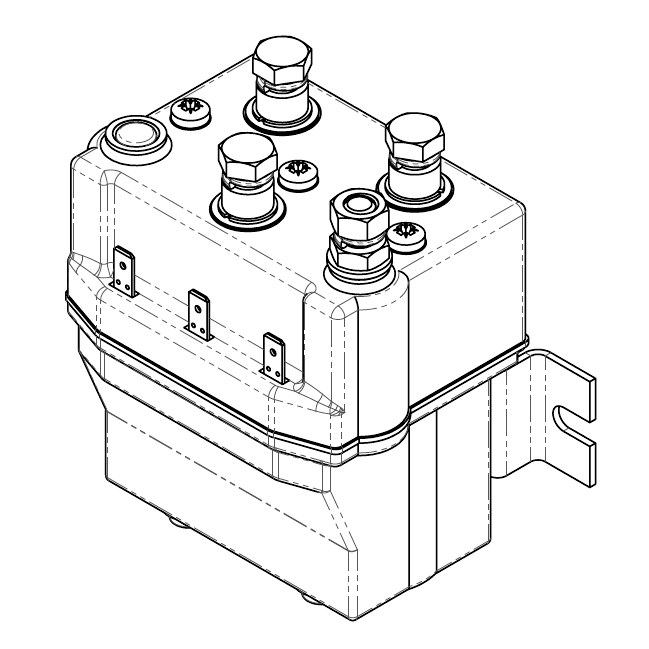

 Albright's DC182-859PL 12Vdc motor-reversing solenoid contactor with large contact tips and sealed to IP67, highly intermittent (HO).

  • The DC182P motor reversing type of contactor has been designed for direct current loads, particularly motors as used on electric winches.
  • The DC182P is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems.
  • The DC182P is suitable for switching Resistive and Inductive loads and is sealed to IP67.
  • Due to the sealed nature of the DC182P, replacement contact kits are not available.
  • Large contact tips.
  • Normally Closed fixed contact on the right hand side.

About The HO DC182-878PL Contactor

 Highly Intermittent Services up to 25% duty cycle and up to 3 minutes continuous energisation. The highest power in the coil allows for a stronger return spring to be used, giving good switching characteristics.

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the circuit remains open. The DC182P has double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

 The DC182P M8 main stud terminals can be configured in a variety of ways in order to suit the application. Coil connections are by means of 6.3mm spades and mounting is via the supplied bracket and can be horizontal or vertical. When vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type DC182P SP - DT
Voltage 12V D.C.
Coil Type Highly Intermittent (HO)
Amps 150A
Coil Resistance (Ohms) 4
Pull-In Voltage (V) 7.5 Max.
Drop Out Voltage (V) 3.5 Max.
Coil Power Dissipation (W) 36.00
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: < 30mV
NC: < 40mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.66kg
Protection Sealed to IP67
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
