DC182-853P Albright 48V DC Intermittent Motor-reversing Contactor - IP67

£132.26  Excl. VAT
  (£158.71 Inc. VAT)
 Excl. VAT

Earn 132 Loyalty Points
1 in stock


Weight:  1.86 kg


Model:  DC182-853P
Bar Code:  DNA
Part Number:  DC182-853P
Brand:  Albright
Colour  Black
Voltage  48V DC
Amperage  150A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

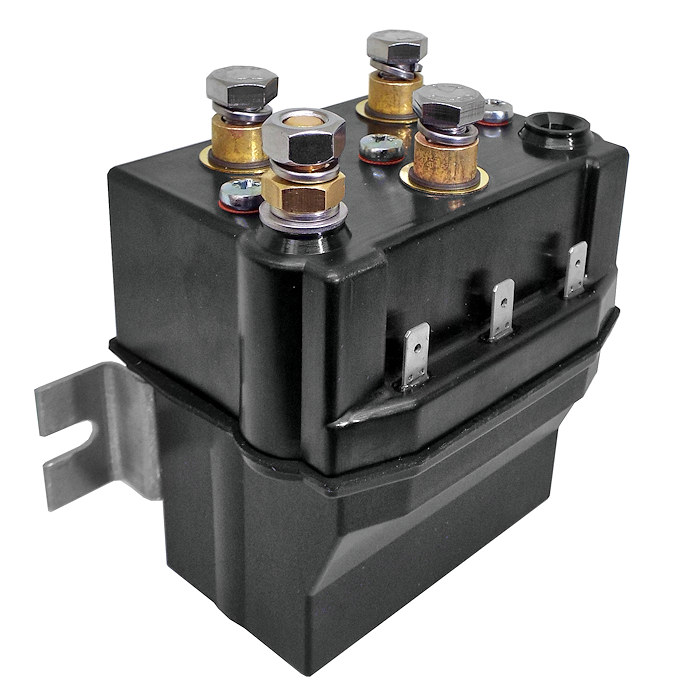

 Albright's DC182-853P 48Vdc motor-reversing intermittent solenoid contactor, sealed to IP67.

  • The DC182P motor reversing type of contactor has been designed for direct current loads, particularly motors as used on electric winches.
  • The DC182P is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems.
  • The DC182P is suitable for switching Resistive and Inductive loads and is sealed to IP67.
  • Due to the sealed nature of the DC182P, replacement contact kits are not available.

About The DC182-853P Contactor

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the circuit remains open. The DC182P has double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.

 The DC182P M8 main stud terminals can be configured in a variety of ways in order to suit the application. Coil connections are by means of 6.3mm spades and mounting is via the supplied bracket and can be horizontal or vertical. When vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type Sealed DC182P SPDT
Voltage 48V D.C.
Coil Type Intermittent
Amps 150A
Coil Resistance (Ohms) 73
Pull-In Voltage (V) 29.0 Maximum
Drop Out Voltage (V) 14.0 Maximum
Coil Power Dissipation (W) 31.56
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: < 30mV
Normally Closed: < 40mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.66kg
Protection Sealed to IP67
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
