American Wire Gauge (AWG) to MM˛ Conversion Guide

Sunday, 2 November 2014  |

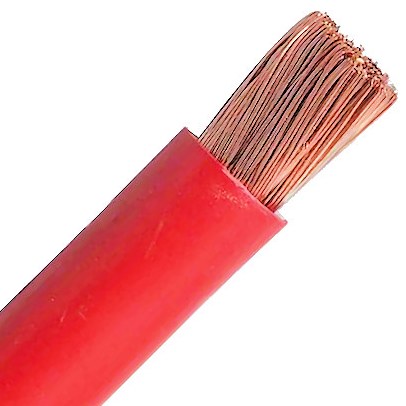

American Wire Gauge (AWG)

  This post is dedicated to an acknowledgement that due to a modern world of information technology and supply chain, circumstances dictate the need to convert wire sizes into a format understandable to a wider global community of mechanical and electrical engineers, specifically for products not purchased from Arc-Components.com that require additional fittings and components that adhere to the UK and metric standards. While the actual required cable and wiring load values must always be sought, whether it be trade, project or DIY application, there is a service need to assist engineers presented with 'country specific' product information.

  Please note: The guide presents AWG in its equivalent Imperial and metric sizes, and the AWG load current (Amperage). The table does not present a metric wire size alternative, it also does not take into consideration metric cable outer construct (standard and thin wall PVC) measurements.

AWG Size Conversion.

AWG Inch Diameter MM Diameter MM² Max Current (A)
0000 0.4600' 11.684mm 107.219mm² 302A
000 0.4096' 10.405mm 85.01mm² 239A
00 0.3648' 9.266mm 67.4mm² 190A
0 0.3249' 8.251mm 53.5mm² 150A
1 0.2893' 7.348mm 42.4mm² 119A
2 0.2576' 6.544mm 33.6mm² 94A
3 0.2294' 5.827mm 26.7mm² 75A
4 0.2043' 5.189mm 21.2mm² 60A
5 0.1819' 4.621mm 16.8mm² 47A
6 0.1620' 4.115mm 13.3mm² 37A
7 0.1443' 3.665mm 10.5mm² 30A
8 0.1285' 3.264mm 8.37mm² 24A
9 0.1144' 2.906mm 6.63mm² 19A
10 0.1019' 2.588mm 5.26mm² 15A
11 0.0907' 2.305mm 4.17mm² 12A
12 0.0808' 2.053mm 3.31mm² 9.3A
13 0.0720' 1.828mm 2.62mm² 7.4A
14 0.0641' 1.628mm 2.08mm² 5.9A
15 0.0571' 1.450mm 1.65mm² 4.7A
16 0.0508' 1.291mm 1.31mm² 3.7A
17 0.0453' 1.150mm 1.04mm² 2.9A
18 0.0403' 1.024mm 0.823mm² 2.3A
19 0.0359' 0.912mm 0.653mm² 1.8A
20 0.0320' 0.812mm 0.518mm² 1.5A
21 0.0285' 0.723mm 0.410mm² 1.2A
22 0.0253' 0.644mm 0.326mm² 0.92A
23 0.0226' 0.573mm 0.258mm² 0.729A
24 0.0201' 0.511mm 0.205mm² 0.577A
25 0.0179' 0.455mm 0.162mm² 0.457A
26 0.0159' 0.405mm 0.129mm² 0.361A
27 0.0142' 0.361mm 0.102mm² 0.288A
28 0.0126' 0.321mm 0.0810mm² 0.226A
29 0.0113' 0.286mm 0.0642mm² 0.182A
30 0.0100' 0.255mm 0.0509mm² 0.142A
31 0.00893' 0.227mm 0.0404mm² 0.113A
32 0.00795' 0.202mm 0.0320mm² 0.091A
33 0.00708' 0.180mm 0.0254mm² 0.072A
34 0.00630' 0.160mm 0.0201mm² 0.056A
35 0.00561' 0.143mm 0.0160mm² 0.044A
36 0.00500' 0.127mm 0.0127mm² 0.035A
37 0.00445' 0.113mm 0.0100mm² 0.0289A
38 0.00397' 0.101mm 0.00797mm² 0.0228A
39 0.00353' 0.0897mm 0.00632mm² 0.0175A
40 0.00314' 0.0799mm 0.00501mm² 0.0137A




Cable wiring and fittings at Arc Components Limited

This blog post was created: 2nd November 2014 and closed for comment 25th July 2015.
