0-933-45 100m x 2.00mm˛ Green-Red 25A Auto Single Core Cable
Bar Code: 5056119132120
Part Number: 0-933-45
Single core, 2mm² thin wall automotive green with a red tracer PVC sheathed electric cable.
- Length: 100m.
- 2.00mm² green-red (green cable, red stripe).
- 25A automotive single core cable.
- 28 Strand 0.30mm.

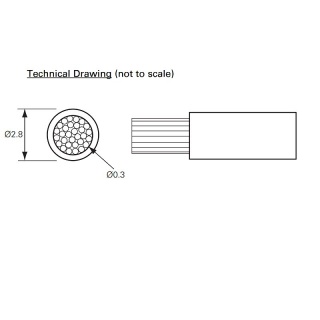

- Outside diameter: 2.8mm.
- To ISO 06722-4.
About the 2mm² Green and Red Thin Wall Electric Cable
100 Metre rolls of 25A green with a red tracer line auto electrical thin wall cable. Used for light to medium current loads, the 2mm² ‘thin wall’ automotive wire has a 28 strands, 0.30mm configuration, with a current load capability to a maximum of 25A continuous. With a reduced but harder PVC coating, thin wall cabling is now standard use for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electric cables, manufactured and tested to ISO6722-4 industry standards, reduce the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.
Used as a conductor wire on low amperage electrical equipment and wiring looms.
|Type ||Single core thin wall cable |
|Current Rating ||25 amp |
|Insulation colour ||Green with a red tracer tine |
|Wire ||28/0.30mm copper |
|Cross section ||2.00mm² |
|Voltage ||60 volt DC maximum |
|Resistance ||9.4mΩ/m at 20℃ |
|Insulation ||Hard grade PVC to BS6746 Type 5. |
|Overall diameter ||2.8mm |
|Temperature ||Minus 40 to +105℃ |
|Length of cable ||100 Metres |
|Approvals ||ISO6722/4 |
|Weight ||2.28Kg |
