0-932-45 100m x 1.00mm˛ Green-Red 16.5A Auto Single Core Cable
Weight: 1.28 kg
Model: 0-932-45
Bar Code: 5056119131789
Part Number: 0-932-45
Brand: Durite
Colour: Green/Red
Amperage: 16.5A
Material: Copper/PVC

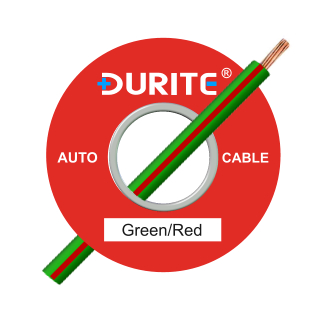

Single core, 1mm² thin wall automotive green with a red tracer PVC sheathed electric cable.
- Length: 100m.
- 1.00mm² green-red (green cable, red stripe).
- 16.5A automotive single core cable.
- 32 Strand 0.20mm.

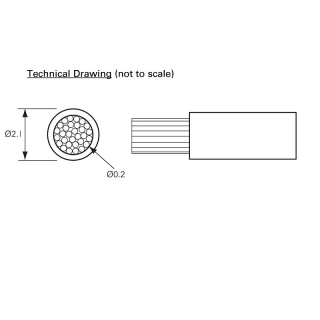

- Outside diameter: 2.1mm.
- To ISO 06722-4.
About the 1mm² Green and Red Thin Wall Electric Cable
100 Metre rolls of light duty 16.5A green with a red tracer line auto electrical thin wall cable, used for light current loads; thin wall configuration increases current load capabilities to a maximum of 16.5 amps continuous. With a reduced but harder PVC coating, thin wall cabling is modern by design and adopted for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electrical cable manufactured to ISO 6722-4 industry standards, reduces the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.
Used as a conductor wire on low amperage electrical equipment and wiring looms.
Specifications
| Type | Single core thin wall cable |
| Current Rating | 16.5 amp |
| Insulation colour | Green with a red tracer line |
| Wire | 32/0.20mm copper |
| Cross section | 1.00mm² |
| Voltage | 60 Volts DC maximum |
| Resistance | 18.5mΩ/m at 20℃ |
| Insulation | Hard grade PVC to BS6746 Type 5. |
| Overall diameter | 2.1mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of cable | 100 Metres |
| Approvals | ISO6722/4 |
| Weight | 1.27Kg |
