0-932-40 100m x 1.00mm² Light Green 16.5A Auto Single-core Cable

£28.64  Excl. VAT
  (£34.37 Inc. VAT)
RRP:  £32.18  Excl. VAT
Initial Savings:  £3.54
Earn 28 Loyalty Points
Available


Weight:  1.28 kg





Model:  0-932-40
Bar Code:  5056119131741
Part Number:  0-932-40
Brand:  Durite
Colour  Light Green
Voltage  12V/24V/36V/48V DC
Amperage  16.5A
Material  Copper/PVC

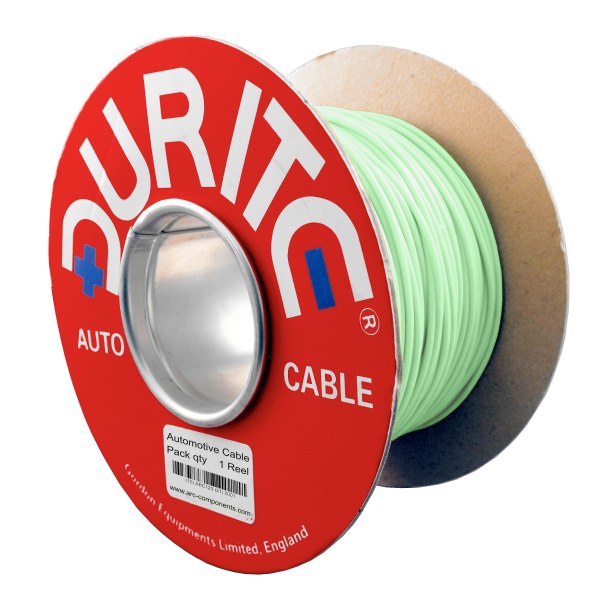

 Durite 16.5A Light Green automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Light Green.
  • 16.5 Amps single-core automotive cable and vehicle wiring.
  • 32 copper strands at 0.20mm.
  • Outside diameter: 2.1mm.
  • Manufactured to ISO 6722-4.
  • Roll length: 100m.

About the 0-932-40 1.00mm² Light Green Thin Wall Electric Cable

 Arc Components Limited presents the 0-932-40, Durite's light-duty 16.5A Light Green automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 32 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps.

 The Durite 0-932-40 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 16.5 Amps
Insulation Colour Light Green
Wire 32/0.20mm copper
Cross-section 1.00mm² (17 AWG)
Voltage 60 Volts DC Max.
Resistance 18.5mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall Diameter   2.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722/4
Weight 1.27Kg







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

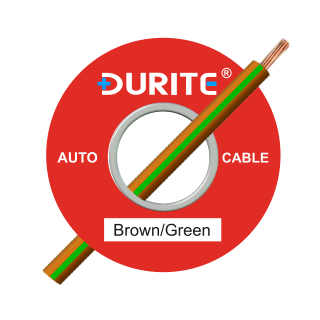

0-932-34 100m x 1.00mm² Brown-Green 16.5A Auto Single-core Cable
0-932-34 100m x 1.00mm² Brown-Green 16.5A Auto Single-core Cable

Durite 1mm² (17 AWG) colour-coded Brown/Green single-core PVC thin wall automotive cable. 16.5A vehicle wiring (32 strands 0.20mm) to ISO 06722-4.


Available
 Reference: 0-932-34 £32.18   £28.64
0-001-91 Pack of 10 Solder Adhesive Lined Heat Shrink Butt Connectors
0-001-91 Pack of 10 Solder Adhesive Lined Heat Shrink Butt Connectors

Durite 0.60mm² to 2.00mm² solder type butt connectors. Adhesive-lined heat-shrink butt terminal connectors with a Red identification stripe.


Available
 Reference: 0-001-91 £6.78   £6.03
0-001-92 Pack of 10 Solder Adhesive Lined Heat Shrink Butt Connectors
0-001-92 Pack of 10 Solder Adhesive Lined Heat Shrink Butt Connectors

Durite 1.80mm² to 2.50mm² solder type butt connectors. Adhesive-lined heat-shrink butt terminal connectors with a Blue identification stripe.


Available
 Reference: 0-001-92 £7.28   £6.48


Related Products
0-932-04 100m x 1.00mm² Green 16.5A Auto Single-core Cable
0-932-04 100m x 1.00mm² Green 16.5A Auto Single-core Cable

Durite 1mm² (17 AWG) colour-coded Green single-core PVC thin wall automotive cable. 16.5A vehicle wiring (32 strands 0.20mm) to ISO 06722-4.


Available
 Reference: 0-932-04 £32.18   £28.64
0-932-14 100m x 1.00mm² Black-Green 16.5A Auto Single-core Cable
0-932-14 100m x 1.00mm² Black-Green 16.5A Auto Single-core Cable

Durite 1mm² (17 AWG) colour-coded Black/Green single-core PVC thin wall automotive cable. 16.5A vehicle wiring (32 strands 0.20mm) to ISO 06722-4.


Available
 Reference: 0-932-14 £32.18   £28.64
0-932-24 100m x 1.00mm² Blue-Green 16.5A Auto Single-core Cable
0-932-24 100m x 1.00mm² Blue-Green 16.5A Auto Single-core Cable

Durite 1mm² (17 AWG) colour-coded Blue/Green single-core PVC thin wall automotive cable. 16.5A vehicle wiring (32 strands 0.20mm) to ISO 06722-4.


Available
 Reference: 0-932-24 £32.18   £28.64
0-932-34 100m x 1.00mm² Brown-Green 16.5A Auto Single-core Cable
0-932-34 100m x 1.00mm² Brown-Green 16.5A Auto Single-core Cable

Durite 1mm² (17 AWG) colour-coded Brown/Green single-core PVC thin wall automotive cable. 16.5A vehicle wiring (32 strands 0.20mm) to ISO 06722-4.


Available
 Reference: 0-932-34 £32.18   £28.64

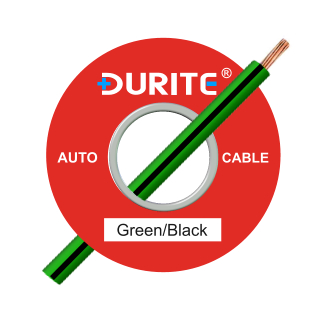

0-932-41 100m x 1.00mm² Green-Black 16.5A Auto Single-core Cable
